Evaluating Hyper-threading and VMWare

original: http://www.ac.upc.edu/pub/reports/DAC/2004/UPC-DAC-2004-27.pdf

Vuk Marojevic, Marisa Gil
Department of Computer Architecture
Polytechnic University of Catalonia
marojevic@tsc.upc.es, marisa@ac.upc.es
Abstract. The Hyperthreading technology has been introduced to enhance CPU
resource utilization so as to increase overall system performance. We briefly
present this technology and evaluate its impact on CPU performance by means
of a small test series. On the software side, VMWare is becoming increasingly
of interest in the private and professional sectors, allowing the installation of
various operating systems on the same physical disk partition. Practically this
means that you can change from one operating system to another as with
applications. We shortly present VMWare and discuss performance measure-
ments in different operating environments.
1 Introduction
1.1 Hyperthreading
Hyperthreading (HT) emerged as a technique to optimize CPU resource utilisation
and is included in the latest Intel processors. It is a technology, also known as
simultaneous multithreading (SMT), enabling the simultaneous processing of multiple
threads of different processes. There is still only one physical processor, but from an
operating system (OS) and user perspective, a simultaneously multithreaded processor
is split into two logical processors, and threads can be scheduled to execute on any of
the logical processors just as they would on either processor of a symmetric
multiprocessor (SMP) system.
The HT technology was introduced to overcome the waste of resources of
microprocessor units. For instance, as the instruction level parallelism (ILP) that can
be extracted from most code is statistically around 2.5 [1], a microprocessor with
resources to handle 4 instructions in parallel will mostly deal with 1 to 3 at a time and
rarely reach 100% of the correspondent resource utilization. In relation to that, empty
pipeline stages of execution core’s functional units, called pipeline bubbles, remain. A
microprocessor supporting HT, on the other hand, can interleave two or more threads
of different programs and thus, decrease the number of missed opportunities for
useful work [1], [2].
This work has been supported by the Ministry of Science and Technology of Spain and by the European
Union (FEDER) under contract TIC 2001-0995-C02-01

Page 2
There are and have been many discussions on the actual benefits of HT. Resuming
them in one sentence, applications may or may not benefit from this technology
depending on a multitude of factors including application peculiarities as well as
system (software and hardware) characteristics. Even a performance decrease is
documented in certain scenarios. Having heard so many different declarations
regarding HT from different interest groups motivated us to schedule a small practical
study. We expose here our results and conclusions, while also mentioning the
problems associated with this technology and the proposed solutions.
1.2 VMWare
VMWare was originally founded in 1998 to bring mainframe-class virtual machine
technology to industry-standard computers [4]. Among its products are server and
workstation solutions, the latter one being of interest for this study. Launched in 1999,
VMWare Workstation works by enabling multiple operating systems (OSs) and their
applications to run concurrently on a single physical machine. These operating
systems and applications are isolated in secure virtual machines that co-exist on a
single piece of hardware. The VMWare virtualization layer maps the physical
hardware resources to the virtual machine's resources, so each virtual machine has its
own CPU, memory, disks, I/O devices, etc [3]. The OSs above and beneath the
virtualization layer are called guest and host operating systems, respectively. This so-
called hosted architecture (figure 1) relies on the host OS and, therefore, does not
have to handle all the hardware abstractions. Once VMWare is installed and executed,
it runs like an ordinary application. More information on VMWare and downloads can
be found in [3].
The motivations for studying VMWare are apparent when studying operating
environments for parallel application resource management. VMWare manages
resources for the concurrent execution of various operating systems which can be
considered as one step beyond the resource management of parallel applications. Due
to its advocates it can be a very useful tool in many different scenarios ranging from
the private sector to the professional software development area. In this study we are
focused on the private and professional sectors, where VMWare is mainly used to
change operating systems without repartitioning disks or rebooting so as to run

Page 3
applications concurrently in both worlds. Then the question arises how efficient it is
working in a guest operating system world. This, of course, is application and
environment dependent and a general answer cannot be found. Instead, what we want
to explore here is how it behaves in some particular scenarios and try to give an, as far
as possible, generalised outlook.
Before heading forward we have to outline that this work basically entertains two
studies to evaluate Hyperthreading and VMWare independently. To date VMWare
does not support HT. Irrespectively of which OS runs beneath or above of VMWare,
each guest OS will see only one logical processor. This is also the case in SMP
architectures. Nevertheless, a third study investigates the effect HT has on CPU
performance while running VMWare.
2 Objectives and Measurement Environments
2.1 CPU performance - HT
In this first study we want to find out if and how much HT increases or decreases

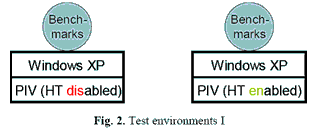

CPU performance. Therefore, we created the environments that are shown in figure 2.
We use some of the SiSoftware Sandra Benchmarks [5] - described as follows - and
run the test with and without having HT enabled.
The selected benchmarks evaluate the CPU performance. They all support multi-
threading (MT) and, therefore, a performance increase enabling HT is a priori
expected. We do five tests: The first, Dhrystone ALU, measures the time it takes to
perform some sequences of instructions, mostly numerical ones that are used by
applications. The result is given in million instructions per second (MIPS). The next
two, Whetstone iSSE2 and Whetstone FPU, measure the time it takes to perform some
sequences of floating-point instructions, where iSSE2 supports double floats (64-bit).
They are optimised for Intel Pentium 4 and return the result in million floating point
instructions per second (MFLOPS). Finally, the numbers associated to the Integer
iSSE2 and Float iSSE2 tests represent the number of iterations per second (it/s) while
generating a picture (860x750 pixels) of the Mandelbrot fractal, using 255 iterations
for each data pixel in 32 colours. Integer iSSE2 is using integers to simulate floating
point numbers. These tests, categorised as CPU Multimedia benchmarks, are real-life
benchmarks rather than synthetic ones [5]. The five benchmark tests described above
will be repeated throughout the whole work.

Page 4
The underlying PC, which is the same for all tests, is a Pentium 4 (PIV) with the
following characteristics: 2,8 GHz processor speed, HT support, 512 KB L2 Cache,
Intel Chipset 875, 800 MHz System bus bandwidth, 512 MB RAM.
2.2 CPU performance - VMWare
In the second part we take a look at VMWare. VMWare is gaining wide popularity as
it allows running various OS without disk repartition and rebooting. This motivated
us to check if it is really that useful and how much CPU performance loss is
associated with working in the guest OS world. Therefore we run the same tests as in
the first study in the following operating environments.

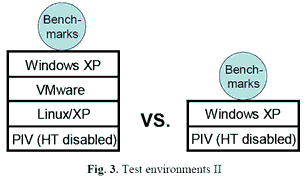

HT is disabled (HT-) for this test series which is run in both the setups shown in
figure 3 so as to compare the results obtained in the guest versus host OS worlds.
2.3 CPU performance – HT/ VMWare
Finally, we study the effect of HT on CPU performance while working in the guest
OS world and in both, guest and host worlds. In the host OS world we first run
VMWare only and then VMWare together with some additional applications (see

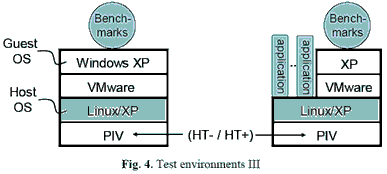

figure 4). Also, we enable and disable HT in each of the two environments. For all
four scenarios the discussed benchmark test are scheduled in guest OS world. Later
when comparing these results we might be able to make some additional conclusions
on the performance of VMWare as well as on HT. Mainly, we want to observe if
VMWare can take advantage of the HT technology, and if not, maybe with some
additional active processes a performance gain can be obtained when having HT
enabled (HT+).
As the additional applications we choose having two web browser windows open
with more or less animated web pages (including radio transmission). Although they
use only 0-3% of the CPU when running in the background, it is somehow a realistic
and reproducible scenario. The task manager and system monitor, respectively, is also
running in the host OS, while performing the benchmark tests in the guest OS.

Page 5
3 Results
3.1 CPU performance – HT: Results

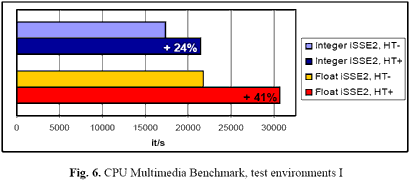

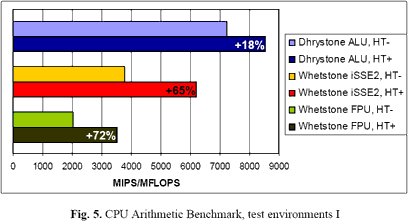

Figures 5 and 6 show the results obtained for the CPU and CPU Multimedia
benchmarks for the setup described in part 2.1. In all five measurements we can
observe significant CPU performance improvements when having HT enabled. This,
however, is no that surprising as all the tests support multithreading (MT). There are
differences in the improvements, though, as each test evaluates a different feature. For
instance, the different percentage gains of the Whetstone (+65/72%) in respect to the
Dhrystone (+18%) as well as the Float iSSE2 (+41%) in respect to Integer iSSE2
(+24%) benchmarks can be explained as follows: FPU units were underutilised in the
original Pentium 4 and, thus, they get good improvement in SMT (50%). The ALUs,
on the other hand, were better utilised and gave great performance already and,
therefore, they get some improvement only (20%) [5].

Page 6
3.2 CPU performance – VMWare: Results

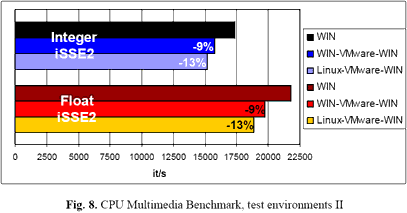

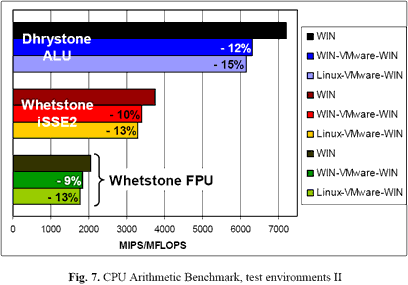

Figures 7 and 8 show the results obtained for the CPU and CPU Multimedia
benchmarks for the setup described in part 2.2. We can observe a CPU performance
loss of about 9-15% when working in the guest in respect to the host Os worlds for
the particular test series. These measurements also unsheathe some OS dependence.
In this sense the PIV-Windows-VMWare-Windows environment leads to better results
than PIV-Linux-VMWare-Windows. Windows (WIN in the figures) is referring to
Windows XP Professional Edition, while Linux represents Red Hat 9 with the 2.4.20
kernel. It would have been interesting to have the results with the latest Linux kernel.
Due to problems with the configuration of VMWare for the 2.6.5 kernel, we could not
obtain these numbers before the paper submission deadline.

Page 7
3.3 CPU performance – HT/VMWare: Results
The following figures illustrate the results obtained for the CPU and CPU Multimedia
benchmarks for one part of the setup described in part 2.3. More precisely, only the
results for the right setup in figure 4 with Linux as the host OS are shown in the
figures. Before taking a look at them, we present what we have obtained for the
operating environment on the left of figure 4.
With Windows as the host OS, enabling and disabling HT has lead to negligible
differences in the obtained results. With Linux as the host OS, enabling HT has
yielded a performance increase of around 5-7%. For the operating environment on the

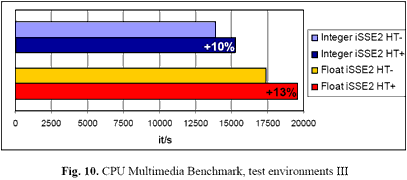

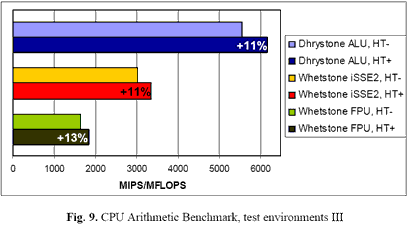

right of figure 4, however, the things look different (see figures 9 and 10). There we
have a performance increase of more 10%. Very similar results have been obtained
with Windows as the host OS. From these results we conclude that HT does not result
in a performance decrease when having one single application running that is not
multithreaded or not optimized for multithreading but rather in no effect at all. On the
other hand, having more than one application running, HT has some considerably
positive effect on CPU performance, even when the applications are not supporting or
are not optimized for multithreading. These last two statements, of course, apply to
the specific test series only. A generalization cannot be made, although it is expected
that there are many more scenarios where similar observations can be made. Finally,
we dare to estimate even better results with the latest Linux kernel, as it has some
more optimisations at OS level for HT supported CPUs.

Page 8
4 Conclusions
These particular benchmark results show that HT increases CPU performance when
the application (in this case the benchmark) supports multithreading (MT). Having
HT enabled and running a single application that does not support or is not optimized
for MT, as is the case with VMWare (which is running like an ordinary application
inside the host OS world), generally does not have any effect at all. On the other hand,
as shown in this work and also stated by Intel [2], having two or more applications
running on a processor with HT enabled a performance increase can be expected,
even when those applications do not support MT. A performance decrease is
documented, although not observed in the scheduled tests, when running heavy-duty
floating point operations, since there is still only one floating point unit. In this case, it
is recommended to disable HT. Another problem that has been discussed in [6] is
when executing applications that need lots of concurrent memory accesses, the
performance can be bus bandwidth bound. The problems occurred there having
system bus speeds of 400 MHz, whereas with 533 MHz these problems disappeared.
We have run a benchmark that evaluates memory bandwidth and another that

Page 9
evaluates cache and memory together on our PIV while enabling and disabling HT.
The obtained results were identical, as we have expected having a system bus
bandwidth of 800 MHz. In future, this might become a problem again when the
processing speed grows unproportional to system bus speeds. Finally to conclude this
part, while the benchmarks we have looked at here have shown improvements of the
HT technology, it is important to do other testing with the applications used on a daily
basis. HT certainly looks auspiciously but there are still situations where HT is going
to negatively impact the performance of an application.
As regards VMWare, our assessment is that it is indeed a useful tool when dealing
with more than one operating system. VMWare has the great advantage that
applications can execute in concurrently in different OS on the same hardware. An
OS switch is fulfilled immediately and the CPU performance loss is, from our point
of view, tolerable. For the discussed tests a performance decrease of 9-15 % has been
observed. This depends on the OS, the applications running in the guest and host OS
worlds and many other factors, like the available physical memory. With insufficient
memory or memory intensive tasks we recommend to not use VMWare but rather
make a new disk partition for each OS one wants to install. There may be more
hardware/software limitations, which we will study in further work. As with HT, a
general guideline cannot be given. Each user has to decide on behalf on his/her
experience and needs whether to use VMWare or not.
References
1. J.H. Stoke: Introduction to Multithreading, Superthreading and Hyperthreading (2002)
2. www.intel.com
3. www.VMWare.com
4. J. Sugaerman, G. Venkitachalam, B.-H. Lim: Virtualizing I/O Devices on VMWare
Workstation’s Hosted Virtual Machine Monitor, Proceeding of the 2001 USENIX Annual
Technical Conference (2001)
5. www.sisoftware.net
6. www.2cpu.com
