Intel
®
Processor Identification
and the CPUID Instruction

Application Note 485



September 2006








Document Number:
241618-031
R
R
2
Application Note
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL
®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL
DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,
COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, or life sustaining
applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
The Intel® processors may contain design defects or errors known as errata which may cause the product to deviate from published specifications.
Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Intel® 64 requires a computer system with a processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel 64.
Processor will not operate (including 32-bit operation) without an Intel 64-enabled BIOS. Performance will vary depending on your hardware and
software configurations. See http://www.intel.com/info/em64t for more information including details on which processors support Intel 64, or consult
with your system vendor for more information.
Not all specified units of this processor support Thermal Monitor 2 and Enhanced Intel SpeedStep® Technology. See the Processor Spec Finder at
http://processorfinder.intel.com or contact your Intel representative for more information.
Hyper-Threading Technology requires a computer system with an Intel® Pentium® 4 processor supporting Hyper-Threading Technology and an
HT Technology enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and software you use. See
http://www.intel.com/info/hyperthreading/ for more information including details on which processors support HT Technology.
± Intel® Virtualization Technology requires a computer system with a processor, chipset, BIOS, virtual machine monitor (VMM) and for some uses,
certain platform software, enabled for it. Functionality, performance or other benefit will vary depending on hardware and software configurations.
Intel Virtualization Technology-enabled VMM applications are currently in development.
Intel, Pentium, Celeron, Itanium, Intel NetBurst, Intel Xeon, Pentium II Xeon, Pentium III Xeon, Intel SpeedStep, OverDrive, MMX, Intel486,
Intel386, IntelDX2, Intel Core, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States
and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 1993--2006, Intel Corporation
R
Application Note
3
Contents
1
Introduction ....................................................................................................................... 11
1.1
Update Support .................................................................................................... 11
2
Detecting the CPUID Instruction ....................................................................................... 13
3
Output of the CPUID Instruction ....................................................................................... 15
3.1
Standard CPUID Functions .................................................................................. 17
3.1.1
Vendor-ID and Largest Standard Function (Function 0) ...................... 17
3.1.2
Feature Information (Function 1) .......................................................... 17
3.1.2.1
Processor Signature............................................................ 17
3.1.2.2
Composing the Family, Model and Stepping (FMS) values 22
3.1.2.3
Feature Flags ...................................................................... 23
3.1.2.4
SYSENTER/SYSEXIT ­ SEP Features Bit ......................... 27
3.1.3
Cache Descriptors (Function 2)............................................................ 27
3.1.3.1
Pentium
®
4 Processor, Model 0 Output Example ............... 30
3.1.4
Processor Serial Number (Function 3) ................................................. 31
3.1.5
Deterministic Cache Parameters (Function 4) ..................................... 31
3.1.5.1
Cache Sharing Among Cores and Threads ........................ 32
3.1.6
MONITOR / MWAIT Parameters (Function 5)...................................... 32
3.1.7
Digital Thermal Sensor and Power Management Parameters (Function
6) ........................................................................................................... 33
3.1.8
Reserved (Function 7) .......................................................................... 34
3.1.9
Reserved (Function 8) .......................................................................... 34
3.1.10
Direct Cache Access (DCA) Parameters (Function 9) ......................... 34
3.2
Extended CPUID Functions ................................................................................. 34
3.2.1
Largest Extended Function # (Function 80000000h) ........................... 34
3.2.2
Extended Feature Bits (Function 80000001h)...................................... 34
3.2.3
Processor Name / Brand String (Function 80000002h, 80000003h,
80000004h)........................................................................................... 35
3.2.3.1
Building the Processor Name.............................................. 36
3.2.3.2
Displaying the Processor Name.......................................... 37
3.2.4
Reserved (Function 80000005h) .......................................................... 37
3.2.5
Extended L2 Cache Features (Function 80000006h) .......................... 37
3.2.6
Reserved (Function 80000007h) .......................................................... 38
3.2.7
Virtual and Physical address Sizes (Function 80000008h).................. 38
4
Processor Serial Number.................................................................................................. 39
4.1
Presence of Processor Serial Number................................................................. 39
4.2
Forming the 96-bit Processor Serial Number....................................................... 40
5
Brand ID and Brand String................................................................................................ 41
5.1
Brand ID ............................................................................................................... 41
5.2
Brand String.......................................................................................................... 41
6
Usage Guidelines.............................................................................................................. 43
R
4
Application Note
7
Proper Identification Sequence......................................................................................... 45
8
Usage Program Examples ................................................................................................ 47
9
Alternate Method of Detecting Features ........................................................................... 49
10
Denormals Are Zero.......................................................................................................... 51
11
Operating Frequency ........................................................................................................ 53
12
Program Examples............................................................................................................ 55
R
Application Note
5
Figures
Figure
2-1. Flag Register Evolution .................................................................................. 13
Figure

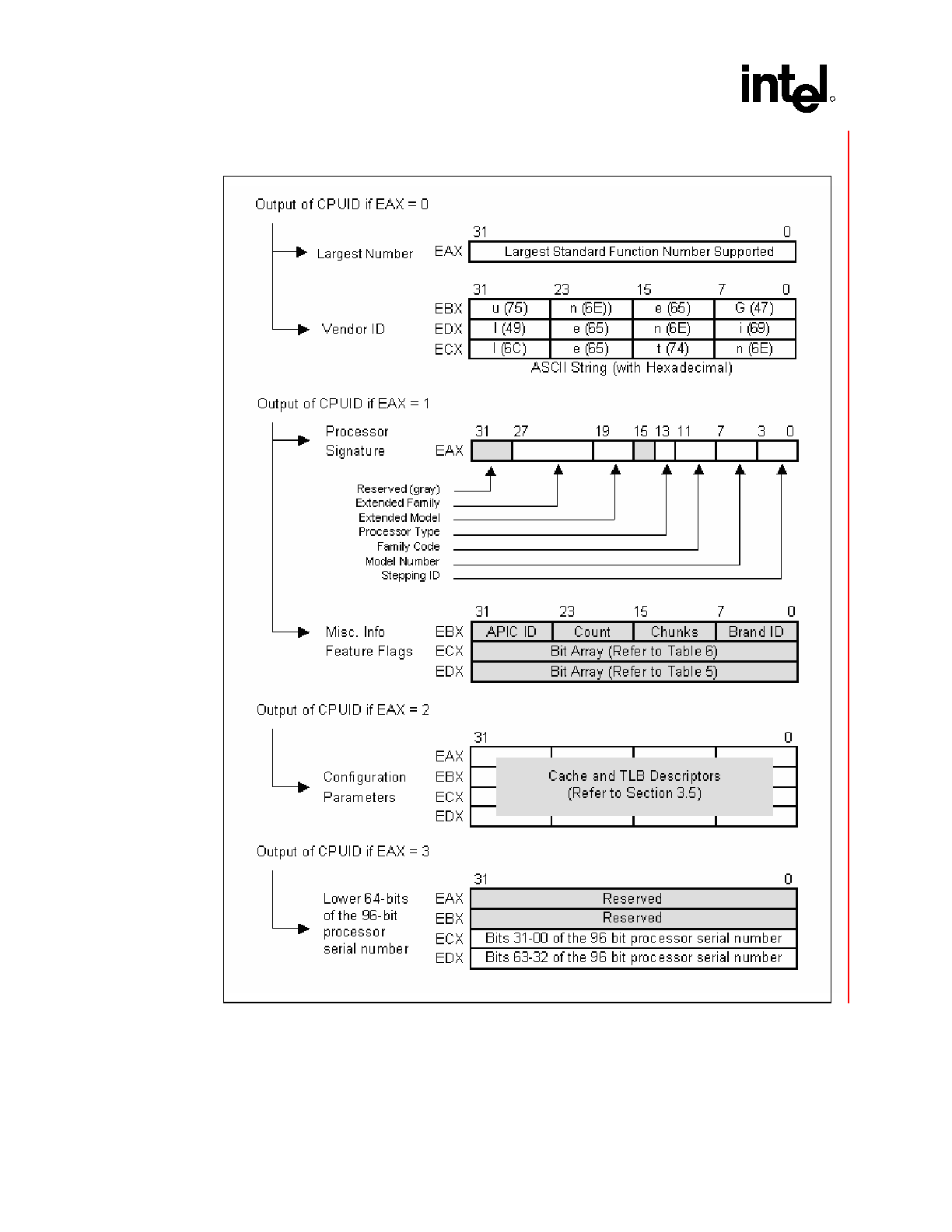

3-1. CPUID Instruction Outputs ............................................................................. 16
Figure
3-2. EDX Register after RESET............................................................................. 17
Figure
3-3. Processor Signature Format on Intel386TM Processors................................. 19
Figure

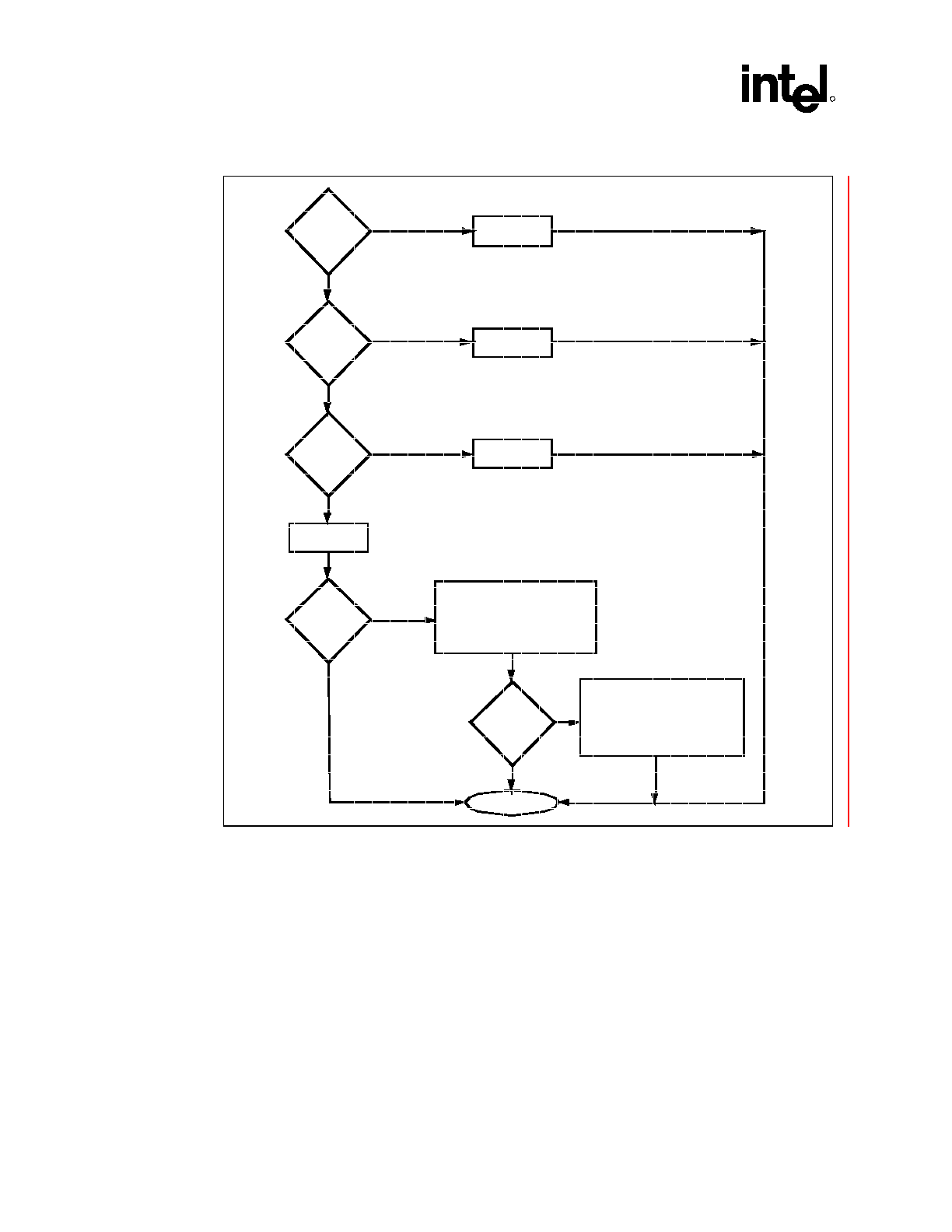

7-1. Flow of Processor
get_cpu_type
Procedure.............................................. 46
Figure
8-1. Flow of Processor Identification Extraction Procedure .................................. 47
Tables
Table
3-1. Processor Type (Bit Positions 13 and 12) ....................................................... 18
Table
3-2. Intel386TM Processor Signatures..................................................................... 19
Table
3-3. Intel486TM and Subsequent Processor Signatures ......................................... 20
Table
3-4. Feature Flag Values Reported in the EDX Register........................................ 23
Table
3-5. Feature Flag Values Reported in the ECX Register........................................ 26
Table
3-6. Descriptor Formats .......................................................................................... 28
Table
3-7. Descriptor Decode Values............................................................................... 28
Table
3-8. Pentium
®
4 Processor, Model 0 with 256 KB L2 Cache CPUID (EAX=2)
Example Return Values ............................................................................................. 31
Table
3-9. Deterministic Cache Parameters..................................................................... 31
Table
3-10. MONITOR / MWAIT Parameters ................................................................... 33
Table
3-11. Digital Thermal Sensor and Power Management Parameters...................... 33
Table
3-12. DCA parameters ............................................................................................ 34
Table
3-13. Largest Extended Function............................................................................ 34
Table
3-14. Extended Feature Flag Values Reported in the EDX Register ..................... 35
Table
3-15. Extended Feature Flag Values Reported in the ECX Register ..................... 35
Table
3-16. L2 Cache Details ........................................................................................... 37
Table
3-17. Virtual and Physical Address Size Definitions............................................... 38
Table
5-1. Brand ID, CPUID (EAX=1) Return Values in EBX (bits 7 through 0) .............. 42
Table
5-2. Processor Brand String Feature ...................................................................... 42
Examples
Example 1. Building the Processor Brand String.............................................................. 36
Example 2. Displaying the Processor Brand String .......................................................... 37
Example 3. Processor Identification Extraction Procedure............................................... 55
Example 4. Processor Identification Procedure in Assembly Language .......................... 64
Example 5. Processor Identification Procedure in the C Language ................................. 84
Example 6. Instruction Extension Detection Using Exception Handlers .......................... 92
Example 7. Detecting Denormals-Are-Zero Support ........................................................ 95
Example 8. Frequency Calculation ................................................................................... 98
R
6
Application Note
Revision History
Revision Description
Date
-001 Original
Issue.
05/93
-002 Modified
Table
3-3 Intel486TM and Pentium® Processor Signatures.
10/93
-003
Updated to accommodate new processor versions. Program examples
modified for ease of use, section added discussing BIOS recognition for
OverDrive® processors and feature flag information updated.
09/94
-004
Updated with Pentium Pro and OverDrive processors information. Modified,
Table
3-2, and . Inserted Table
3-5. Feature Flag Values Reported in the ECX
Register , , . Inserted Sections 3.4. and 3.5.
12/95
-005 Added
Figure
2-1 and Figure
3-2. Added Footnotes 1 and 2. Modified. Added
Assembly code example in Section 4. Modified Tables 3, 5 and 7. Added two
bullets in Section 5.0. Modified cpuid3b.ASM and cpuid3b.C programs to
determine if processor features MMXTM technology. Modified Figure 6.0.
11/96
-006
Modified Table 3. Added reserved for future member of P6 family of
processors entry. Modified table header to reflect Pentium
II
processor family.
Modified Table 5. Added SEP bit definition. Added Section 3.5. Added
Section 3.7 and Table 9. Corrected references of P6 family to reflect correct
usage.
Modified cpuid3a.asm, cpuid3b.asm and cpuid3.c example code sections to
check for SEP feature bit and to check for, and identify, the Pentium
II
processor. Added additional disclaimer related to designers and errata.
03/97
- 007
Modified Table 2. Added Pentium
II
processor, model 5 entry. Modified
existing Pentium
II
processor entry to read "Pentium
II
processor, model 3".
Modified Table 5. Added additional feature bits, PAT and FXSR. Modified
Table 7. Added entries 44h and 45h.
Removed the note "Do not assume a value of 1 in a feature flag indicates that
a given feature is present. For future feature flags, a value of 1 may indicate
that the specific feature is not present" in section 4.0.
Modified cpuid3b.asm and cpuid3.c example code section to check for, and
identify, the Pentium
II
processor, model 5. Modified existing Pentium
II
processor code to print Pentium
II
processor, model 3.
01/98
- 008
Added note to identify Intel
®
Celeron
®
processor, model 5 in section 3.2.
Modified Table 2. Added Celeron processor and Pentium
®
OverDrive
®
processor with MMXTM technology entry. Modified Table 5. Added additional
feature bit, PSE-36.
Modified cpuid3b.asm and cpuid3.c example code to check for, and identify,
the Celeron processor.
04/98
-009
Added note to identify Pentium
II
XeonTM processor in section 3.2. Modified
Table 2. Added Pentium
II
Xeon processor entry.
Modified cpuid3b.asm and cpuid3.c example code to check for, and identify,
the Pentium
II
Xeon processor.
06/98
-010 No
Changes
R
Application Note
7
Revision Description
Date
-011
Modified Table 2. Added Celeron processor, model 6 entry.
Modified cpuid3b.asm and cpuid3.c example code to check for, and identify,
the Celeron processor, model 6.
12/98
-012
Modified Figure 1 to add the reserved information for the Intel386 processors.
Modified Figure 2. Added the Processor serial number information returned
when the CPUID instruction is executed with EAX=3. Modified Table 1. Added
the Processor serial number parameter. Modified Table 2. Added the Pentium
III processor and Pentium III Xeon processor. Added Section 4 "Processor
serial number".
Modified cpuid3a.asm, cpuid3b.asm and cpuid3.c example code to check for
and identify the Pentium III processor and the Pentium III Xeon processor.
12/98
-013
Modified Figure 2. Added the Brand ID information returned when the CPUID
instruction is executed with EAX=1. Added section 5 "Brand ID". Added Table
10 that shows the defined Brand ID values.
Modified cpuid3a.asm, cpuid3b.asm and cpuid3.c example code to check for
and identify the Pentium III processor, model 8 and the Pentium III Xeon
processor, model 8.
10/99
-014
Modified Table 4. Added Celeron processor, model 8
03/00
-015
Modified Table 4. Added Pentium III Xeon processor, model A. Modified ,
Added the 8-way set associative 1M, and 8-way set associative 2M cache
descriptor entries.
05/00
-016
Revised Figure 2 to include the Extended Family and Extended Model when
CPUID is executed with EAX=1.
Added section 6 which describes the Brand String.
Added section 10 Alternate Method of Detecting Features and sample code .
Added the Pentium 4 processor signature to Table 4.
Added new feature flags (SSE2, SS and TM) to Table 5.
Added new cache descriptors to .
Removed Pentium Pro cache descriptor example.
11/00
-017
Modified Figure 2 to include additional features reported by the Pentium 4
processors.
Modified to include additional Cache and TLB descriptors defined by the
Intel® NetBurstTM microarchitecture.
Added Section
10 and program Example 5 which describes how to detect if a
processor supports the DAZ feature.
Added Section
11 and program Example 6 which describes a method of
calculating the actual operating frequency of the processor.
02/01
-018
Changed the second 66h cache descriptor in Table 7 to 68h.
Added the 83h cache descriptor to Table 7.
Added the Pentium III processor, model B, processor signature and the Intel
Xeon processor, processor signature to Table 4.
Modified Table 4 to include the extended family and extended model fields.
Modified Table 1 to include the information returned by the extended CPUID
functions.
06/01
R
8
Application Note
Revision Description
Date
-019
Changed to use registered trademark for Intel® Celeron® throughout entire
document.
Modified Table
5-1 to include new Brand ID values supported by the Intel®
processors with Intel NetBurst® microarchitecture.
Added Hyper-Threading Technology Flag to and Logical Processor Count to .
Modified cpuid3b.asm and cpuid3.c example code to check for and identify
Intel® processors based on the updated Brand ID values contained in Table
5-1.
01/02
-020 Modified
to include new Cache Descriptor values supported by the Intel
processors with Intel NetBurst microarchitecture.
Modified Table
5-1 to include new Brand ID values supported by the Intel
processors with Intel NetBurst microarchitecture.
Modified cpuid3b.asm and cpuid3.c example code to check for and identify
Intel® processors based on the updated Brand ID values contained in Table
5-1.
03/02
-021 Modified
Table
3-3 to include additional processors that return a processor
signature with a value in the family code equal to 0Fh.
Modified to include new Cache Descriptor values supported by various Intel
processors.
Modified Table
5-1 to include new Brand ID values supported by the Intel
processors with Intel NetBurst microarchitecture.
Modified cpuid3b.asm and cpuid3.c example code to check for and identify
Intel processors based on the updated Brand ID values contained in Table
5-1.
05/02
-022 Modified
with correct Cache Descriptor descriptions.
Modified with new feature flags returned in EDX.
Added Table
3-5. Feature Flag Values Reported in the ECX Register the
feature flags returned in ECX.
Modified Table
3-3, broke out the processors with family `F' by model
numbers.
11/02
-023 Modified
Table
3-3, added the Intel® Pentium® M processor.
Modified with new feature flags returned in EDX.
Modified Table
3-5. Feature Flag Values Reported in the ECX Register the
feature flags returned in ECX.
Modified with correct Cache Descriptor descriptions.
03/03
-024
Corrected feature flag definitions in Table
3-5. Feature Flag Values Reported
in the ECX Register for bits 7 and 8.
11/03
R
Application Note
9
Revision Description
Date
-025
Modified Table 1 to add Deterministic Cache Parameters function (CPUID
executed with EAX=4), MONITOR/MWAIT function (CPUID instruction is
executed with EAX=5), Extended L2 Cache Features function (CPUID
executed with EAX=80000006), Extended Addresses Sizes function (CPUID is
executed with EAX=80000008).
Modified Table 1 and Table 5 to reinforce no PSN on Pentium® 4 family
processors.
Modified, added the Intel® Pentium® 4 processor and Intel® Celeron®
processor on 90nm process.
Modified Table
3-5. Feature Flag Values Reported in the ECX Register to add
new feature flags returned in ECX.
Modified to include new Cache Descriptor values supported by various Intel
processors.
Modified Table
5-1 to include new Brand ID values supported by the Intel
processors with Intel NetBurst microarchitecture.
Modified cpuid3b.asm and cpuid3.c example code to check for and identify
Intel processors based on the updated Brand ID values contained in Table
5-1.
Modified features.cpp, cpuid3.c, and cpuid3a.asm to check for and identify
new feature flags based on the updated values in Table
3-5. Feature Flag
Values Reported in the ECX Register .
01/04
-026
Corrected the name of the feature flag returned in EDX[31] (PBE) when the
CPUID instruction is executed with EAX set to a 1.
Modified to indicate CPUID function 80000001h now returns extended feature
flags in the EAX register.
Added the Intel® Pentium® M processor (family 6, model D) to Table
3-3.
Added section
3.2.2 and .
Modified Table
3-5. Feature Flag Values Reported in the ECX Register to add
new feature flags returned in ECX.
Modified
1
Table
3-5. Feature Flag Values Reported in the ECX Register to
include new Cache Descriptor values supported by various Intel processors.
Modified Table
5-1 to include new Brand ID values supported by the Intel
processors with P6 family microarchitecture.
Modified cpuid3b.asm and cpuid3.c example code to check for and identify
Intel processors based on the updated Brand ID values contained in Table
5-1.
Modified features.cpp, cpuid3.c, and cpuid3a.asm to check for and identify
new feature flags based on the updated values in Table
3-5. Feature Flag
Values Reported in the ECX Register .
05/04
-027
Corrected the register used for Extended Feature Flags in 07/04
R
10
Application Note
Revision Description
Date
-028
Corrected bit field definitions in for CPUID functions 80000001h and
80000006h.
Added processor names for family `F', model `4' to Table
3-3.
Updated Table
3-5. Feature Flag Values Reported in the ECX Register to
include the feature flag definition (ECX[13]) for the CMPXCHG16B instruction.
Updated to include extended feature flag definitions for (EDX[11]) SYSCALL /
SYSRET and (EDX[20]) Execute Disable bit.
Updated Example 1 to extract CPUID extended function information.
Updated Example 2 and Example 3 to detect and display extended features
identified by CPUID function 80000001h.
02/05
-029 Modified
to include new Cache Descriptor values supported by various Intel
processors.
03/05
-030
Corrected Table
3-15. Extended Feature Flag Values Reported in the ECX
Register.
Added CPUID function 6, Power management Feature to Table 3-1.
Updated Table 3-5 to include the feature flag definition (EDX[30]) for IA64
capabilities.
Updated Table 3-10 to include new Cache Descriptor values supported by Intel
Pentium 4 processors.
Modified cpuid3b.asm and cpuid3.c example code to check for IA64
capabilites, CMPXCHG16B, LAHF/SAHF instructions.
01/06
-031
Update Intel® EM64T portions with new naming convention for Inte® 64
Instruction Set Architecture.
Added section Composing the Family, Model and Stepping (FMS) values
Added section Extended CPUID Functions
Updated Table 3-4 to include the Intel® CoreTM2 Duo processor family.
Updated Table 3-6 to include the feature flag definitions for VMX, SSSE3 and
DCA.
Updated Table 3-10 to include new Cache Descriptor values supported by
Intel Core 2 Duo processor.
Update CPUFREQ.ASM with alternate method to determine frequency without
using TSC.
09/06
§
Introduction
R
Application Note
11
1 Introduction
As the Intel
®
Architecture evolves with the addition of new generations and models of processors
(8086, 8088, Intel286, Intel386TM, Intel486TM, Pentium
®
processors, Pentium
®
OverDrive
®
processors, Pentium
®
processors with MMXTM technology, Pentium
®
OverDrive
®
processors with
MMXTM technology, Pentium
®
Pro processors, Pentium
®
II processors, Pentium
®
II Xeon
®
processors, Pentium
®
II Overdrive
®
processors, Intel
®
Celeron
®
processors, Mobile Intel
®
Celeron
®
processors, Intel
®
Celeron
®
D processors, Intel
®
Celeron
®
M processors, Pentium
®
III
processors, Mobile Intel
®
Pentium
®
III Processor - M, Pentium
®
III Xeon
®
processors, Pentium
®
4 processors, Mobile Intel
®
Pentium
®
4 processor ­ M, Intel
®
Pentium
®
M Processor, Pentium
®
D
processor, Pentium
®
processor Extreme Edition, Intel
®
CoreTM Solo processor, Intel
®
CoreTM Duo
processor, Intel
®
CoreTM2 Duo processor, Intel
®
CoreTM2 Extreme processor, Intel
®
Xeon
®
processors and Intel
®
Xeon
®
processor MP), it is essential that Intel provide an increasingly
sophisticated means with which software can identify the features available on each processor.
This identification mechanism has evolved in conjunction with the Intel Architecture as follows:
1.
Originally, Intel published code sequences that could detect minor implementation or
architectural differences to identify processor generations.
2.
Later, with the advent of the Intel386 processor, Intel implemented processor signature
identification that provided the processor family, model, and stepping numbers to software,
but only upon reset.
3.
As the Intel Architecture evolved, Intel extended the processor signature identification into
the CPUID instruction. The CPUID instruction not only provides the processor signature, but
also provides information about the features supported by and implemented on the Intel
processor.
The evolution of processor identification was necessary because, as the Intel Architecture
proliferates, the computing market must be able to tune processor functionality across processor
generations and models that have differing sets of features. Anticipating that this trend will
continue with future processor generations, the Intel Architecture implementation of the CPUID
instruction is extensible.
This application note explains how to use the CPUID instruction in software applications, BIOS
implementations, and various processor tools. By taking advantage of the CPUID instruction,
software developers can create software applications and tools that can execute compatibly across
the widest range of Intel processor generations and models, past, present, and future.
1.1 Update
Support
You can obtain new Intel processor signature and feature bits information from the developer's
manual, programmer's reference manual or appropriate documentation for a processor. In
addition, you can receive updated versions of the programming examples included in this
application note; contact your Intel representative for more information, or visit Intel's website at
http://developer.intel.com/
.
§
Introduction
R
12
Application Note
Detecting the CPUID Instruction
R
Application Note
13
2
Detecting the CPUID Instruction
The Intel486 family and subsequent Intel processors provide a straightforward method for
determining whether the processor's internal architecture is able to execute the CPUID instruction.
This method uses the ID flag in bit 21 of the EFLAGS register. If software can change the value
of this flag, the CPUID instruction is executable
1
(see Figure 2-1).
Figure
2-1. Flag Register Evolution

ID
R
Pentium® and subsequent IA32 Processor Eflags
Register
ID
Intel486TM Processor Eflags Register
Intel386TM Processor Eflags Register
286 Flags Register
8086 Flags Register
21
Notes:
1)
R ­ Intel
Reserved
2)
ID - CPUID
Presence bit
The POPF, POPFD, PUSHF, and PUSHFD instructions are used to access the Flags in Eflags
register. The program examples at the end of this application note show how you use the
PUSHFD instruction to read and the POPFD instruction to change the value of the ID flag.
§
1
Only in some Intel486TM and succeeding processors. Bit 21 in the Intel386TM processor's Eflag register cannot be
changed by software, and the Intel386 processor cannot execute the CPUID instruction. Execution of CPUID on a
processor that does not support this instruction will result in an invalid opcode exception.
Detecting the CPUID Instruction
R
14
Application Note
Output of the CPUID Instruction
R
Application Note
15
3
Output of the CPUID Instruction
The CPUID instruction supports two sets of functions. The first set returns basic processor
information. The second set returns extended processor information. Figure 3-1 summarizes the
basic processor information output by the CPUID instruction. The output from the CPUID
instruction is fully dependent upon the contents of the EAX register. This means, by placing
different values in the EAX register and then executing CPUID, the CPUID instruction will
perform a specific function dependent upon whatever value is resident in the EAX register. In
order to determine the highest acceptable value for the EAX register input and CPUID functions
that return the basic processor information, the program should set the EAX register parameter
value to "0" and then execute the CPUID instruction as follows:
MOV EAX,
00H
CPUID
After the execution of the CPUID instruction, a return value will be present in the EAX register.
Always use an EAX parameter value that is equal to or greater than zero and less than or equal to
this highest EAX "returned" value.
In order to determine the highest acceptable value for the EAX register input and CPUID
functions that return the extended processor information, the program should set the EAX register
parameter value to "80000000h" and then execute the CPUID instruction as follows:
MOV EAX,
80000000H
CPUID
After the execution of the CPUID instruction, a return value will be present in the EAX register.
Always use an EAX parameter value that is equal to or greater than 80000000h and less than or
equal to this highest EAX "returned" value. On current and future IA-32 processors, bit 31 in the
EAX register will be clear when CPUID is executed with an input parameter greater then highest
value for either set of functions, and when the extended functions are not supported. All other bit
values returned by the processor in response to a CPUID instruction with EAX set to a value
higher than appropriate for that processor are model specific and should not be relied upon.
Output of the CPUID Instruction
R
16
Application Note
Figure
3-1. CPUID Instruction Outputs
Output of the CPUID Instruction
R
Application Note
17
3.1
Standard CPUID Functions
3.1.1
Vendor-ID and Largest Standard Function (Function 0)
In addition to returning the largest standard function number in the EAX register, the Intel
Vendor-ID string can be simultaneously verified as well. If the EAX register contains an input
value of 0, the CPUID instruction also returns the vendor identification string in the EBX, EDX,
and ECX registers (see Figure 3-1). These registers contain the ASCII string:
GenuineIntel
While any imitator of the Intel Architecture can provide the CPUID instruction, no imitator can
legitimately claim that its part is a genuine Intel part. So, the presence of the "GenuineIntel" string
is an assurance that the CPUID instruction and the processor signature are implemented as
described in this document. If the "GenuineIntel" string is not returned after execution of the
CPUID instruction, do not rely upon the information described in this document to interpret the
information returned by the CPUID instruction.
3.1.2
Feature Information (Function 1)
3.1.2.1 Processor
Signature
Beginning with the Intel486 processor family, the EDX register contains the processor
identification signature after reset (see Figure 3-2). The processor identification signature is a
32-bit value.
The processor signature is composed from eight different bit fields. The fields in
gray represent reserved bits, and should be masked out when utilizing the processor signature.
The remaining six fields form the processor identification signature.
Figure
3-2. EDX Register after RESET
31
28 27
20 19
16 1
5
1
4
1
3
1
2
11
8 7
4 3
0
EDX =
Extended
Family
Extended
Model
Type
Family
Code
Model
Number
Stepping
ID
Processors that implement the CPUID instruction also return the 32-bit processor identification
signature after reset; however, the CPUID instruction gives you the flexibility of checking the
processor signature at any time. Figure 3-2 shows the format of the 32-bit processor signature for
the Intel486, and subsequent Intel processors. Note that the EDX processor signature value after
reset is equivalent to the processor signature output value in the EAX register in Figure 3-1. Table

3-3 shows the values returned in the EAX register currently defined for these processors.
The extended family, bit positions 20 through 27 are used in conjunction with the family code,
specified in bit positions 8 through 11, to indicate whether the processor belongs to the Intel386,
Intel486, Pentium, Pentium Pro or Pentium 4 family of processors. P6 family processors include
all processors based on the Pentium Pro processor architecture and have an extended family equal
to 00h and a family code equal to 6h. Pentium 4 family processors include all processors based on
Output of the CPUID Instruction
R
18
Application Note
the Intel NetBurst
®
microarchitecture and have an extended family equal to 00h and a family code
equal to 0Fh.
The extended model, bit positions 16 through 19 in conjunction with the model number, specified
in bits 4 though 7, are used to identify the model of the processor within the processor's family.
The stepping ID in bits 0 through 3 indicates the revision number of that model.
The processor type, specified in bit positions 12 and 13 of Table 3-1 indicates whether the
processor is an original OEM processor, an OverDrive processor, or a dual processor (capable of
being used in a dual processor system). Table 3-1shows the processor type values returned in bits
12 and 13 of the EAX register.
Table
3-1. Processor Type (Bit Positions 13 and 12)
Value
Description
00
Original OEM processor
01
OverDrive
®
processor
10
Dual processor
11
Intel reserved (Do Not Use)
The Pentium II processor, model 5, the Pentium II Xeon processor, model 5, and the Celeron
processor, model 5 share the same extended family, family code, extended model and model
number. To differentiate between the processors, software should check the cache descriptor
values through executing CPUID instruction with EAX = 2. If no L2 cache is returned, the
processor is identified as an Intel
®
Celeron
®
processor, model 5. If 1 MB or 2 MB L2 cache size
is reported, the processor is the Pentium II Xeon processor otherwise it is a Pentium II processor,
model 5 or a Pentium II Xeon processor with 512 KB L2 cache.
The Pentium
III
processor, model 7, and the Pentium
III
Xeon processor, model 7, share the same
extended family, family code, extended model and model number. To differentiate between the
processors, software should check the cache descriptor values through executing CPUID
instruction with EAX = 2. If 1 M or 2 M L2 cache size is reported, the processor is the Pentium
III
Xeon processor otherwise it is a Pentium
III
processor or a Pentium
III
Xeon processor with
512 KB L2 cache.
The processor brand for the Pentium
III
processor, model 8, the Pentium
III
Xeon processor,
model 8, and the Celeron processor, model 8, can be determined by using the Brand ID values
returned by the CPUID instruction when executed with EAX equal to 1. Table 5-1 shows the
processor brands defined by the Brand ID.
Output of the CPUID Instruction
R
Application Note
19
Older versions of Intel486 SX, Intel486 DX and IntelDX2TM processors do not support the
CPUID instruction
2
, so they can only return the processor signature at reset. Refer to Table 3-3 to
determine which processors support the CPUID instruction.
Figure 3-3 shows the format of the processor signature for Intel386 processors, which are
different from other processors. Table 3-2 shows the values currently defined for these Intel386
processors.
Figure
3-3. Processor Signature Format on Intel386TM Processors
31
15
0
Type
Family
Major Stepping
Minor Stepping
Intel Reserved. Do not define.
RESET
EDX
11
7
3
Table
3-2. Intel386TM Processor Signatures
Type
Family
Major Stepping
Minor Stepping
Description
0000
0011
0000
xxxx
Intel386TM DX processor
0010
0011
0000
xxxx
Intel386 SX processor
0010
0011
0000
xxxx
Intel386 CX processor
0010
0011
0000
xxxx
Intel386 EX processor
0100
0011
0000 and 0001
xxxx
Intel386 SL processor
0000 0011
0100
xxxx
RapidCAD*
coprocessor
2
All Intel486 SL-enhanced and Write-Back enhanced processors are capable of executing the CPUID instruction. See
Table 3-3.
Output of the CPUID Instruction
R
20
Application Note
Table
3-3. Intel486TM and Subsequent Processor Signatures
Extended
Family
Extended
Model
Type
Family
Code
Model
Number Stepping ID
Description
00000000
0000
00
0100
000x
xxxx
(1)
Intel486TM DX processors
00000000
0000
00
0100
0010
xxxx
(1)
Intel486 SX processors
00000000
0000
00
0100
0011
xxxx
(1)
Intel487TM processors
00000000
0000
00
0100
0011
xxxx
(1)
IntelDX2TM processors
00000000
0000
00
0100
0011
xxxx
(1)
IntelDX2 OverDrive
®
processors
00000000
0000
00
0100
0100
xxxx
(3)
Intel486 SL processor
00000000
0000
00
0100
0101
xxxx
(1)
IntelSX2TM processors
00000000
0000
00
0100
0111
xxxx
(3)
Write-Back Enhanced IntelDX2
processors
00000000
0000
00
0100
1000
xxxx
(3)
IntelDX4TM processors
00000000
0000
0x
0100
1000
xxxx
(3)
IntelDX4 OverDrive processors
00000000
0000
00
0101
0001
xxxx
(2)
Pentium
®
processors (60, 66)
00000000
0000
00
0101
0010
xxxx
(2)
Pentium processors (75, 90, 100, 120,
133, 150, 166, 200)
00000000
0000
01
(4)
0101
0001
xxxx
(2)
Pentium OverDrive processor for
Pentium processor (60, 66)
00000000
0000
01
(4)
0101
0010
xxxx
(2)
Pentium OverDrive processor for
Pentium processor (75, 90, 100, 120,
133)
00000000
0000
01
0101
0011
xxxx
(2)
Pentium OverDrive processors for
Intel486 processor-based systems
00000000
0000
00
0101
0100
xxxx
(2)
Pentium processor with MMXTM
technology (166, 200)
00000000
0000
01
0101
0100
xxxx
(2)
Pentium OverDrive processor with
MMXTM technology for Pentium
processor (75, 90, 100, 120, 133)
00000000
0000
00
0110
0001
xxxx
(2)
Pentium Pro processor
00000000
0000
00
0110
0011
xxxx
(2)
Pentium
II
processor, model 3
00000000
0000
00
0110
0101
(5)
xxxx
(2)
Pentium
II
processor, model 5,
Pentium
II
Xeon processor, model 5,
and Intel
®
Celeron
®
processor, model 5
00000000
0000
00
0110
0110
xxxx
(2)
Celeron processor, model 6
00000000
0000
00
0110
0111
(6)
xxxx
(2)
Pentium III processor, model 7, and
Pentium III Xeon processor, model 7
00000000
0000
00
0110
1000
(7)
xxxx
(2)
Pentium III processor, model 8,
Pentium III Xeon processor, model 8,
and Celeron processor, model 8
00000000
0000
00
0110
1001
xxxx
(2)
Intel Pentium M processor, Intel
Celeron M processor model 9.
00000000
0000
00
0110
1010
xxxx
(2)
Pentium III Xeon processor, model A
Output of the CPUID Instruction
R
Application Note
21
Extended
Family
Extended
Model
Type
Family
Code
Model
Number Stepping ID
Description
00000000
0000
00
0110
1011
xxxx
(2)
Pentium III processor, model B
00000000
0000
00
0110
1101
xxxx
(2)
Intel Pentium M processor, Intel
Celeron M processor, model D. All
processors are manufactured using the
90 nm process.
00000000
0000
00
0110
1110
xxxx
(2)
Intel CoreTM Duo processor, Intel
CoreTM Solo processor, model E. All
processors are manufactured using the
65 nm process.
00000000
0000
00
0110
1111
xxxx
(2)
Intel CoreTM2 Duo processor, model F.
All processors are manufactured using
the 65 nm process.
00000000
0000
01
0110
0011
xxxx
(2)
Intel Pentium
II
OverDrive processor
00000000
0000
00
1111
0000
xxxx
(2)
Pentium 4 processor, Intel Xeon
processor. All processors are model 0
and manufactured using the 0.18
micron process.
00000000
0000
00
1111
0001
xxxx
(2)
Pentium 4 processor, Intel Xeon
processor, Intel Xeon processor MP,
and Intel Celeron processor. All
processors are model 1 and
manufactured using the 0.18 micron
process.
00000000
0000
00
1111
0010
xxxx
(2)
Pentium 4 processor, Mobile Intel
Pentium 4 processor ­ M, Intel Xeon
processor, Intel Xeon processor MP,
Intel Celeron processor, and Mobile
Intel Celeron processor. All
processors are model 2 and
manufactured using the 0.13 micron
process.
00000000
0000
00
1111
0011
xxxx
(2)
Pentium 4 processor, Intel Xeon
processor, Intel Celeron D processor.
All processors are model 3 and
manufactured using the 90 nm
process.
Output of the CPUID Instruction
R
22
Application Note
Extended
Family
Extended
Model
Type
Family
Code
Model
Number Stepping ID
Description
00000000
0000
00
1111
0100
xxxx
(2)
Pentium 4 processor, Pentium 4
processor Extreme Edition, Pentium D
processor, Intel Xeon processor, Intel
Xeon processor MP, Intel Celeron D
processor. All processors are model 4
and manufactured using the 90 nm
process.
00000000
0000
00
1111
0110
xxxx
(2)
Pentium 4 processor, Pentium D
processor, Pentium processor Extreme
Edition, Intel Xeon processor, Intel
Xeon processor MP, Intel Celeron D
processor. All processors are model 6
and manufactured using the 65 nm
process.
NOTES:
1.
This processor does not implement the CPUID instruction.
2.
Refer to the Intel486TM documentation, the Pentium
®
Processor Specification Update (Document
Number 242480), the Pentium
®
Pro Processor Specification Update (Document Number 242689),
the Pentium
®
II Processor Specification Update (Document Number 243337), the Pentium
®
II Xeon
Processor Specification Update (Document Number 243776), the Intel
®
Celeron
®
Processor
Specification Update (Document Number 243748), the Pentium
®
III Processor Specification Update
(Document Number 244453), the Pentium
®
III Xeon Processor Specification Update (Document
Number 244460), the Pentium
®
4 Processor Specification Update (Document Number 249199), the
Intel
®
Xeon
®
Processor Specification Update (Document Number 249678) or the Intel
®
Xeon
®
Processor MP Specification Update (Document Number 290741) for the latest list of stepping
numbers.
3.
Stepping 3 implements the CPUID instruction.
4.
The definition of the type field for the OverDrive processor is 01h. An erratum on the Pentium
OverDrive processor will always return 00h as the type.
5.
To differentiate between the Pentium II processor, model 5, Pentium II Xeon processor and the
Celeron processor, model 5, software should check the cache descriptor values through executing
CPUID instruction with EAX = 2. If no L2 cache is returned, the processor is identified as a Celeron
processor, model 5. If 1 M or 2 M L2 cache size is reported, the processor is the Pentium II Xeon
processor otherwise it is a Pentium II processor, model 5 or a Pentium II Xeon processor with 512-
KB L2 cache size.
6.
To differentiate between the Pentium III processor, model 7 and the Pentium III Xeon processor,
model 7, software should check the cache descriptor values through executing CPUID instruction
with EAX = 2. If 1M or 2M L2 cache size is reported, the processor is the Pentium III Xeon processor
otherwise it is a Pentium III processor or a Pentium III Xeon processor with 512-KB L2 cache size.
7.
To differentiate between the Pentium III processor, model 8 and the Pentium III Xeon processor,
model 8, software should check the Brand ID values through executing CPUID instruction with
EAX = 1.
8.
To differentiate between the processors with the same processor Vendor ID, software should
execute the Brand String functions and parse the Brand String.
3.1.2.2
Composing the Family, Model and Stepping (FMS) values
The processor family is an 8-bit value obtained by adding the Extended Family field of the
processor signature returned by CPUID function 1 with the Family field.
Equation 1. Calculated Family Value
F = Extended Family + Family
F = CPUID(1).EAX[27:20] + CPUID(1).EAX[11:8]
Output of the CPUID Instruction
R
Application Note
23
The processor model is an 8-bit value obtained by shifting left 4 the Extended Model field of the
processor signature returned by CPUID function 1 then adding the Model field.
Equation 2. Calculated Model Value
M = (Extended Model << 4) + Model
M = (CPUID(1).EAX[19:16] << 4) + CPUID(1).EAX[7:4]
The processor stepping is a 4-bit value obtained by copying the Stepping field of the processor
signature returned by CPUID function 1.
Equation 3. Calculated Stepping Value
S = Stepping
S = CPUID(1).EAX[3:0]
Recommendations for Testing Compliance
New and existing software should be inspected to ensure code always uses (1) the full 32-bit
value when comparing processor signatures, (2) the full 8-bit value when comparing processor
families, the full 8-bit value when comparing processor models, and (3) the 4-bit value when
comparing processor steppings.
3.1.2.3 Feature
Flags
When the EAX register contains a value of 1, the CPUID instruction (in addition to loading the
processor signature in the EAX register) loads the EDX and ECX register with the feature flags.
The feature flags (when a Flag = 1) indicate what features the processor supports. Table 3-4 and
Table 3-5 list the currently defined feature flag values.
For future processors, refer to the programmer's reference manual, user's manual, or the
appropriate documentation for the latest feature flag values.
Use the feature flags in your applications to determine which processor features are supported. By
using the CPUID feature flags to determine processor features, your software can detect and avoid
incompatibilities introduced by the addition or removal of processor features.
Table
3-4. Feature Flag Values Reported in the EDX Register
Bit
Name
Description when
Flag = 1
Comments
0
FPU
Floating-point unit on-Chip
The processor contains an FPU that supports
the Intel387 floating-point instruction set.
1
VME
Virtual Mode Extension
The processor supports extensions to virtual-
8086 mode.
2
DE
Debugging Extension
The processor supports I/O breakpoints,
including the CR4.DE bit for enabling debug
extensions and optional trapping of access to
the DR4 and DR5 registers.
3
PSE
Page Size Extension
The processor supports 4-Mbyte pages.
Output of the CPUID Instruction
R
24
Application Note
Bit
Name
Description when
Flag = 1
Comments
4
TSC
Time-Stamp Counter
The RDTSC instruction is supported including
the CR4.TSD bit for access/privilege control.
5
MSR
Model Specific Registers
Model Specific Registers are implemented with
the RDMSR, WRMSR instructions
6
PAE
Physical Address Extension Physical addresses greater than 32 bits are
supported.
7
MCE
Machine Check Exception
Machine Check Exception, Exception 18, and
the CR4.MCE enable bit are supported
8
CX8
CMPXCHG8 Instruction
Supported
The compare and exchange 8 bytes instruction
is supported.
9
APIC
On-chip APIC Hardware
Supported
The processor contains a software-accessible
Local APIC.
10
Reserved
Do not count on their value.
11
SEP
Fast System Call
Indicates whether the processor supports the
Fast System Call instructions, SYSENTER and
SYSEXIT. NOTE: Refer to Section
0 for further
information regarding SYSENTER/ SYSEXIT
feature and SEP feature bit.
12
MTRR
Memory Type Range
Registers
The Processor supports the Memory Type
Range Registers specifically the MTRR_CAP
register.
13
PGE
Page Global Enable
The global bit in the page directory entries
(PDEs) and page table entries (PTEs) is
supported, indicating TLB entries that are
common to different processes and need not be
flushed. The CR4.PGE bit controls this feature.
14
MCA
Machine Check Architecture The Machine Check Architecture is supported,
specifically the MCG_CAP register.
15
CMOV
Conditional Move Instruction
Supported
The processor supports CMOVcc, and if the
FPU feature flag (bit 0) is also set, supports the
FCMOVCC and FCOMI instructions.
16
PAT
Page Attribute Table
Indicates whether the processor supports the
Page Attribute Table. This feature augments the
Memory Type Range Registers (MTRRs),
allowing an operating system to specify
attributes of memory on 4K granularity through a
linear address.
17
PSE-36
36-bit Page Size Extension
Indicates whether the processor supports 4-
Mbyte pages that are capable of addressing
physical memory beyond 4GB. This feature
indicates that the upper four bits of the physical
address of the 4-Mbyte page is encoded by bits
13-16 of the page directory entry.
Output of the CPUID Instruction
R
Application Note
25
Bit
Name
Description when
Flag = 1
Comments
18
PSN
Processor serial number is
present and enabled
The processor supports the 96-bit processor
serial number feature, and the feature is
enabled.
Note: The Pentium 4 family of processors do
not support this feature.
19
CLFSH
CLFLUSH Instruction
supported
Indicates that the processor supports the
CLFLUSH instruction.
20
Reserved
Do not count on their value.
21
DS
Debug Store
Indicates that the processor has the ability to
write a history of the branch to and from
addresses into a memory buffer.
22
ACPI
Thermal Monitor and
Software Controlled Clock
Facilities supported
The processor implements internal MSRs that
allow processor temperature to be monitored
and processor performance to be modulated in
predefined duty cycles under software control.
23
MMX
Intel Architecture MMX
technology supported
The processor supports the MMX technology
instruction set extensions to Intel Architecture.
24
FXSR
Fast floating point save and
restore
Indicates whether the processor supports the
FXSAVE and FXRSTOR instructions for fast
save and restore of the floating point context.
Presence of this bit also indicates that
CR4.OSFXSR is available for an operating
system to indicate that it uses the fast
save/restore instructions.
25
SSE
Streaming SIMD Extensions
supported
The processor supports the Streaming SIMD
Extensions to the Intel Architecture.
26
SSE2
Streaming SIMD Extensions
2
Indicates the processor supports the Streaming
SIMD Extensions ­ 2 Instructions.
27
SS
Self-Snoop
The processor supports the management of
conflicting memory types by performing a snoop
of its own cache structure for transactions issued
to the bus.
Output of the CPUID Instruction
R
26
Application Note
Bit
Name
Description when
Flag = 1
Comments
28
HTT
Multi-Threading
The physical processor package is capable of
supporting more than one logical processor.
This field does not indicate that Hyper-Threading
Technology or Core Multi-Processing (CMP) has
been enabled for this specific processor. To
determine if Hyper-Threading Technology or
CMP is supported, compare value returned in
EBX[23:16] after executing CPUID with EAX=1.
If the resulting value is > 1, then the processor
supports Multi-Threading.
IF (CPUID(1).EBX[23:16] > 1)
{
Multi-Threading = TRUE
}
ELSE
{
Multi-Threading = FALSE
}
29
TM
Thermal Monitor supported
The processor implements the Thermal Monitor
automatic thermal control circuit (TCC).
30
IA64
IA64 Capabilities
The processor is a member of the Intel®
Itanium® processor family and currently
operating in IA32 emulation mode.
31
PBE
Pending Break Enable
The processor supports the use of the
FERR#/PBE# pin when the processor is in the
stop-clock state (STPCLK# is asserted) to signal
the processor that an interrupt is pending and
that the processor should return to normal
operation to handle the interrupt. Bit 10 (PBE
enable) in the IA32_MISC_ENABLE MSR
enables this capability.
Table
3-5. Feature Flag Values Reported in the ECX Register
Bit
Name
Description when
Flag = 1
Comments
0
SSE3
Streaming SIMD Extensions
3
The processor supports the Streaming SIMD
Extensions 3 instructions.
2:1
Reserved
Do not count on their value.
3
MONITOR
MONITOR/MWAIT
The processor supports the MONITOR and
MWAIT instructions.
4
DS-CPL
CPL Qualified Debug Store
The processor supports the extensions to the
Debug Store feature to allow for branch
message storage qualified by CPL.
5
VMX
Virtual Machine Extensions
The processor supports Intel® Virtualization
Technology
6
Reserved
Do not count on their value.
7
EST
Enhanced Intel SpeedStep®
Technology
The processor implements the second-
generation Intel SpeedStep Technology feature.
Output of the CPUID Instruction
R
Application Note
27
Bit
Name
Description when
Flag = 1
Comments
8
TM2
Thermal Monitor 2
The processor implements the Thermal Monitor
2 thermal control circuit (TCC).
9
SSSE3
Supplemental Streaming
SIMD Extensions 3
The processor supports the Supplemental
Streaming SIMD Extensions 3 instructions.
10
CID
Context ID
The L1 data cache mode can be set to either
adaptive mode or shared mode by the BIOS.
12:11
Reserved
Do not count on their value.
13
CX16
CMPXCHG16B
This processor supports the CMPXCHG16B
instruction.
14
xTPR
Send Task Priority
Messages
The processor supports the ability to disable
sending Task Priority messages. When this
feature flag is set, Task Priority messages may
be disabled. Bit 23 (Echo TPR disable) in the
IA32_MISC_ENABLE MSR controls the sending
of Task Priority messages.
17:15
Reserved
18
DCA
Direct Cache Access
The processor supports the ability to prefetch
data from a memory mapped device.
31:19
Reserved
Do not count on their value.
3.1.2.4 SYSENTER/SYSEXIT
­ SEP Features Bit
The SYSENTER Present (SEP) Feature bit (return in EDX bit 11 after executing of CPUID
function 1) indicates the presence of this facility. An operating system that detects the presence of
the SEP Feature bit must also qualify the processor family and model to ensure that the
SYSENTER/SYSEXIT instructions are actually present:
IF (CPUID SEP Feature bit is set, i.e. CPUID (1).EDX[11] == 1)
{
IF ((Processor Signature & 0x0FFF3FFF) < 0x00000633)
Fast System Call is NOT supported
ELSE
Fast System Call is supported
}
The Pentium Pro processor (Model = 1) returns a set SEP CPUID feature bit, but should not be
used by software.
3.1.3
Cache Descriptors (Function 2)
When the EAX register contains a value of 2, the CPUID instruction loads the EAX, EBX, ECX
and EDX registers with descriptors that indicate the processors cache and TLB characteristics.
The lower 8 bits of the EAX register (AL) contain a value that identifies the number of times the
CPUID has to be executed to obtain a complete image of the processor's caching systems. For
example, the Pentium 4 processor returns a value of 1 in the lower 8 bits of the EAX register to
Output of the CPUID Instruction
R
28
Application Note
indicate that the CPUID instruction need only be executed once (with EAX = 2) to obtain a
complete image of the processor configuration.
The remainder of the EAX register, the EBX, ECX and EDX registers contain the cache and TLB
descriptors. Table 3-6 shows that when bit 31 in a given register is zero, that register contains
valid 8-bit descriptors. To decode descriptors, move sequentially from the most significant byte of
the register down through the least significant byte of the register. Assuming bit 31 is 0, then that
register contains valid cache or TLB descriptors in bits 24 through 31, bits 16 through 23, bits 8
through 15 and bits 0 through 7. Software must compare the value contained in each of the
descriptor bit fields with the values found in Table 3-7 to determine the cache and TLB features
of a processor
Table 3-7 lists the current cache and TLB descriptor values and their respective characteristics.
This list will be extended in the future as necessary. Between models and steppings of processors
the cache and TLB information may change bit field locations, therefore it is important that
software not assume fixed locations when parsing the cache and TLB descriptors.
Table
3-6. Descriptor Formats
Register bit 31
Descriptor Type
Description
1
Reserved
Reserved for future use.
0
8-bit descriptors
Descriptors point to a parameter table to identify
cache characteristics. The descriptor is null if it
has a 0 value.
Table
3-7. Descriptor Decode Values
Value
Cache or TLB Description
00h
Null
01h
Instruction TLB: 4 KB Pages, 4-way set associative, 32 entries
02h
Instruction TLB: 4 MB Pages, fully associative, 2 entries
03h
Data TLB: 4 KB Pages, 4-way set associative, 64 entries
04h
Data TLB: 4 MB Pages, 4-way set associative, 8 entries
05h
Data TLB: 4 MB Pages, 4-way set associative, 32 entries
06h
1
st
-level instruction cache: 8 KB, 4-way set associative, 32-byte line size
08h
1
st
-level instruction cache: 16 KB, 4-way set associative, 32-byte line size
0Ah
1
st
-level data cache: 8 KB, 2-way set associative, 32-byte line size
0Ch
1
st
-level data cache: 16 KB, 4-way set associative, 32-byte line size
22h
3
rd
-level cache: 512 KB, 4-way set associative, sectored cache, 64-byte line size
23h
3
rd
-level cache: 1 MB, 8-way set associative, sectored cache, 64-byte line size
25h
3
rd
-level cache: 2 MB, 8-way set associative, sectored cache, 64-byte line size
29h
3
rd
-level cache: 4 MB, 8-way set associative, sectored cache, 64-byte line size
2Ch
1
st
-level data cache: 32 KB, 8-way set associative, 64-byte line size
30h
1
st
-level instruction cache: 32 KB, 8-way set associative, 64-byte line size
Output of the CPUID Instruction
R
Application Note
29
Value
Cache or TLB Description
39h
2
nd
-level cache: 128 KB, 4-way set associative, sectored cache, 64-byte line size
3Ah
2
nd
-level cache: 192 KB, 6-way set associative, sectored cache, 64-byte line size
3Bh
2
nd
-level cache: 128 KB, 2-way set associative, sectored cache, 64-byte line size
3Ch
2
nd
-level cache: 256 KB, 4-way set associative, sectored cache, 64-byte line size
3Dh
2
nd
-level cache: 384 KB, 6-way set associative, sectored cache, 64-byte line size
3Eh
2
nd
-level cache: 512 KB, 4-way set associative, sectored cache, 64-byte line size
40h
No 2
nd
-level cache or, if processor contains a valid 2
nd
-level cache, no 3
rd
-level cache
41h
2
nd
-level cache: 128 KB, 4-way set associative, 32-byte line size
42h
2
nd
-level cache: 256 KB, 4-way set associative, 32-byte line size
43h
2
nd
-level cache: 512 KB, 4-way set associative, 32-byte line size
44h
2
nd
-level cache: 1 MB, 4-way set associative, 32-byte line size
45h
2
nd
-level cache: 2 MB, 4-way set associative, 32-byte line size
46h
3
rd
-level cache: 4 MB, 4-way set associative, 64-byte line size
47h
3
rd
-level cache: 8 MB, 8-way set associative, 64-byte line size
49h
3
rd
-level cache: 4 MB, 16-way set associative, 64-byte line size (Intel Xeon processor MP,
Family F, Model 6)
2
nd
-level cache: 4 MB, 16-way set associative, 64-byte line size
4Ah
3
rd
-level cache: 6 MB, 12-way set associative, 64-byte line size
4Bh
3
rd
-level cache: 8 MB, 16-way set associative, 64-byte line size
4Ch
3
rd
-level cache: 12 MB, 12-way set associative, 64-byte line size
4Dh
3
rd
-level cache: 16 MB, 16-way set associative, 64-byte line size
50h
Instruction TLB: 4 KB, 2 MB or 4 MB pages, fully associative, 64 entries
51h
Instruction TLB: 4 KB, 2 MB or 4 MB pages, fully associative, 128 entries
52h
Instruction TLB: 4 KB, 2 MB or 4 MB pages, fully associative, 256 entries
56h
L0 Data TLB: 4 MB pages, 4-way set associative, 16 entries
57h
L0 Data TLB: 4 MB pages, 4-way set associative, 16 entries
5Bh
Data TLB: 4 KB or 4 MB pages, fully associative, 64 entries
5Ch
Data TLB: 4 KB or 4 MB pages, fully associative, 128 entries
5Dh
Data TLB: 4 KB or 4 MB pages, fully associative, 256 entries
60h
1
st
-level data cache: 16 KB, 8-way set associative, sectored cache, 64-byte line size
66h
1
st
-level data cache: 8 KB, 4-way set associative, sectored cache, 64-byte line size
67h
1
st
-level data cache: 16 KB, 4-way set associative, sectored cache, 64-byte line size
68h
1
st
-level data cache: 32 KB, 4 way set associative, sectored cache, 64-byte line size
70h
Trace cache: 12 K-uops, 8-way set associative
71h
Trace cache: 16 K-uops, 8-way set associative
Output of the CPUID Instruction
R
30
Application Note
Value
Cache or TLB Description
72h
Trace cache: 32 K-uops, 8-way set associative
73h
Trace cache: 64 K-uops, 8-way set associative
78h
2
nd
-level cache: 1 MB, 4-way set associative, 64-byte line size
79h
2
nd
-level cache: 128 KB, 8-way set associative, sectored cache, 64-byte line size
7Ah
2
nd
-level cache: 256 KB, 8-way set associative, sectored cache, 64-byte line size
7Bh
2
nd
-level cache: 512 KB, 8-way set associative, sectored cache, 64-byte line size
7Ch
2
nd
-level cache: 1 MB, 8-way set associative, sectored cache, 64-byte line size
7Dh
2
nd
-level cache: 2 MB, 8-way set associative, 64-byte line size
7Fh
2
nd
-level cache: 512 KB, 2-way set associative, 64-byte line size
82h
2
nd
-level cache: 256 KB, 8-way set associative, 32-byte line size
83h
2
nd
-level cache: 512 KB, 8-way set associative, 32-byte line size
84h
2
nd
-level cache: 1 MB, 8-way set associative, 32-byte line size
85h
2
nd
-level cache: 2 MB, 8-way set associative, 32-byte line size
86h
2
nd
-level cache: 512 KB, 4-way set associative, 64-byte line size
87h
2
nd
-level cache: 1 MB, 8-way set associative, 64-byte line size
B0h
Instruction TLB: 4 KB Pages, 4-way set associative, 128 entries
B1h
Instruction TLB: 4 MB Pages, 4-way set associative, 4 entries
Instruction TLB: 2 MB Pages, 4-way set associative, 8 entries
B3h
Data TLB: 4 KB Pages, 4-way set associative, 128 entries
B4h
Data TLB: 4 KB Pages, 4-way set associative, 256 entries
F0h
64-byte Prefetching
F1h
128-byte Prefetching
3.1.3.1 Pentium
®
4 Processor, Model 0 Output Example
The Pentium 4 processor, model 0 returns the values shown in Table 3-8. Since the value of
AL=1, it is valid to interpret the remainder of the registers. Table 3-8 also shows the MSB (bit 31)
of all the registers are 0 which indicates that each register contains valid 8-bit descriptor. The
register values in Table 3-8 show that this Pentium 4 processor has the following cache and TLB
characteristics:
·
(66h) A 1
st
-level data cache that is 8 KB, 4-way set associative, dual-sectored line, with
64-byte sector size.
·
(5Bh) A data TLB that maps 4 KB or 4 MB pages, is fully associative, and has 64 entries.
·
(50h) An instruction TLB that maps 4 KB, 2 MB or 4 MB pages, is fully associative, and has
64 entries.
·
(7Ah) A 2
nd
-level cache that is 256 KB, 8-way set associative, dual-sectored line, with 64-
byte sector size.
·
(70h) A trace cache that can store up to 12K-uops, and is 8-way set associative.
·
(40h) No 3
rd
-level cache
Output of the CPUID Instruction
R
Application Note
31
Table
3-8. Pentium
®
4 Processor, Model 0 with 256 KB L2 Cache CPUID (EAX=2)
Example Return Values
31
23
15
7 0
EAX
66h
5Bh
50h
01h
EBX
00h
00h
00h
00h
ECX
00h
00h
00h
00h
EDX
00h
7Ah
70h
40h
3.1.4
Processor Serial Number (Function 3)
Processor serial number (PSN) is available in Pentium III processor only. The value in this
register is reserved in the Pentium 4 processor or later .On all models, use the PSN flag (returned
using CPUID) to check for PSN support before accessing the feature. Refer to Section 4 for more
details.
3.1.5
Deterministic Cache Parameters (Function 4)
When EAX is initialized to a value of 4, the CPUID instruction returns deterministic cache
information in the EAX, EBX, ECX and EDX registers. This function requires ECX be
initialized with an index which indicates which cache to return information about. The OS is
expected to call this function (CPUID.4) with ECX = 0, 1, 2, until EAX[4:0] == 0, indicating no
more caches. The order in which the caches are returned is not specified and may change at
Intel's discretion.
Note:
The BIOS will use this function to determine the number of cores implemented in a specific
physical processor package. To do this the BIOS must initially set the EAX register to 4 and the
ECX register to 0 prior to executing the CPUID instruction. After executing the CPUID
instruction, (EAX[31:26] + 1) contains the number of cores.
Table
3-9. Deterministic Cache Parameters
Register Bits
Description
EAX[31:26]
Number of processor cores on this die.
Encoded with a "plus 1" encoding. Add one to the value in the register field to get the
number.
EAX[25:14]
Total Number of threads sharing this cache.
Encoded with a "plus 1" encoding. Add one to the value in the register field to get the
number.
EAX[13:10]
Reserved.
EAX[09]
Fully Associative Cache
EAX[08]
Self Initializing cache level
EAX[07:05]
Cache Level (Starts at 1)
Output of the CPUID Instruction
R
32
Application Note
Register Bits
Description
EAX[4:0]
Cache Type
0 = Null, no more caches
1 = Data Cache
2 = Instruction Cache
3 = Unified Cache
4-31 = Reserved
EBX[31:22]
Ways of Associativity
Encoded with a "plus 1" encoding. Add one to the value in the register field to get the
number.
EBX[21:12]
Physical Line partitions
Encoded with a "plus 1" encoding. Add one to the value in the register field to get the
number.
EBX[11:0]
System Coherency Line Size
ECX[31:0]
Number of Sets
Encoded with a "plus 1" encoding. Add one to the value in the register field to get the
number.
EDX[31:10]
Reserved
EDX[9:0]
Prefetch stride (64B if this field is 0)
Equation 4. Calculating the Cache Size
This Cache Size in Bytes = (Ways + 1) * (Partitions + 1) * (Line_Size + 1) * (Sets + 1)
= (EBX[31:22] + 1) * (EBX[21:12] + 1) * (EBX[11:0] + 1) * (ECX + 1)
3.1.5.1
Cache Sharing Among Cores and Threads
The multi-core and threads fields give information about cache sharing. By comparing the
following three numbers:
4.
Number of logical processors per physical processor package (CPUID.1.EBX[23:16])
5.
Number of cores per physical package (CPUID.4.EAX[31:26] + 1)
6.
Total number of threads serviced by this cache (CPUID.4.EAX[25:14] + 1)
Software can determine whether this cache is shared between cores, or specific to one core, or
even specific to one thread or a subset of threads. This feature is very important with regard to
logical processors since it is a means of differentiating a Hyper-Threading technology processor
from a multi-core processor or a multi-core processor with Hyper-Threading Technology. Note
that the sharing information was not available using the cache descriptors returned by CPUID
function 2.
3.1.6
MONITOR / MWAIT Parameters (Function 5)
When EAX is initialized to a value of 5, the CPUID instruction returns MONITOR / MWAIT
parameters in the EAX, EBX, ECX and EDX registers if the MONITOR and MWAIT
instructions are supported by the processor.
Output of the CPUID Instruction
R
Application Note
33
Table
3-10. MONITOR / MWAIT Parameters
Register Bits
Description
EAX[31:16]
Reserved.
EAX[15:0]
Smallest monitor line size in bytes.
EBX[31:16]
Reserved.
EBX[15:0]
Largest monitor line size in bytes.
ECX[31:2]
Reserved.
ECX[1]
Support for treating interrupts as break-events for MWAIT.
ECX[0]
MONITOR / MWAIT Extensions supported
EDX[31:20]
Reserved
EDX[19:16]
Number of C4 sub-states supported using MONITOR / MWAIT
1
EDX[15:12]
Number of C3 sub-states supported using MONITOR / MWAIT
EDX[11:8]
Number of C2 sub-states supported using MONITOR / MWAIT
EDX[7:4]
Number of C1 sub-states supported using MONITOR / MWAIT
EDX[3:0]
Number of C0 sub-states supported using MONITOR / MWAIT
3.1.7
Digital Thermal Sensor and Power Management
Parameters (Function 6)
When EAX is initialized to a value of 6, the CPUID instruction returns Digital Thermal Sensor
and Power Management parameters in the EAX, EBX, ECX and EDX registers.
Table
3-11. Digital Thermal Sensor and Power Management Parameters
Register Bits
Description
EAX[31:1]
Reserved.
EAX[0]
Digital Thermal Sensor Capability
EBX[31:4]
Reserved.
EBX[3:0]
Number of Interrupt Thresholds.
ECX[31:1]
Reserved.
ECX[0]
Hardware Coordination Feedback Capability (Presence of ACNT, MCNT MSRs)
EDX[31:0]
Reserved.
Output of the CPUID Instruction
R
34
Application Note
3.1.8
Reserved (Function 7)
3.1.9
Reserved (Function 8)
3.1.10
Direct Cache Access (DCA) Parameters (Function 9)
When EAX is initialized to a value of 9, the CPUID instruction returns DCA information in the
EAX, EBX, ECX and EDX registers.
Table
3-12. DCA parameters
Register Bits
Description
EAX[31:0]
Value of PLATFORM_DCA_CAP MSR Bits [31:0] (Offset 1F8h)
EBX[31:0]
Reserved
ECX[31:0]
Reserved
EDX[31:0]
Reserved
3.2
Extended CPUID Functions
3.2.1
Largest Extended Function # (Function 80000000h)
When EAX is initialized to a value of 8000_0000h, the CPUID instruction returns the largest
extended function number supported by the processor in register EAX.
Table
3-13. Largest Extended Function
31 23 15 7
0
EAX[31:0]
Largest extended function number supported
EBX[31:0]
Reserved
EDX[31:0]
Reserved
ECX[31:0]
Reserved
3.2.2
Extended Feature Bits (Function 80000001h)
When the EAX register contains a value of 80000001h, the CPUID instruction loads the EDX
register with the extended feature flags. The feature flags (when a Flag = 1) indicate what
extended features the processor supports. 4 lists the currently defined extended feature flag
values.
For future processors, refer to the programmer's reference manual, user's manual, or the
appropriate documentation for the latest extended feature flag values.
Output of the CPUID Instruction
R
Application Note
35
Note:
Use the extended feature flags in your applications to determine which processor features are
supported. By using the CPUID feature flags to determine processor features, your software can
detect and avoid incompatibilities introduced by the addition or removal of processor features.
Table
3-14. Extended Feature Flag Values Reported in the EDX Register
Bit
Name
Description when
Flag = 1
Comments
10:0
Reserved
Do not count on their value.
11
SYSCALL
SYSCALL/SYSRET
The processor supports the SYSCALL and
SYSRET instructions.
19:12
Reserved
Do not count on their value.
20
XD Bit
Execution Disable Bit
The processor supports the XD Bit when PAE
mode paging is enabled.
28:21
Reserved
Do not count on their value.
29
Intel® 64
Inte® 64 Instruction Set
Architecture
The processor supports 64-bit extensions to the
IA-32 Architecture. For additional information
refer to the "64-bit Extensions Technology
Software Developers Guide" (document
numbers 300834 and
300835) available at:
http://developer.intel.com/technology/64bi
textensions/
31:30
Reserved
Do not count on their value.
Table
3-15. Extended Feature Flag Values Reported in the ECX Register
Bit
Name
Description when
Flag = 1
Comments
0
LAHF
LAHF / SAHF
A value of 1 indicates the LAHF and SAHF
instructions are available when the IA-32e mode
is enabled and the processor is operating in the
64-bit sub-mode.
31:1
Reserved
Do not count on their value.
3.2.3
Processor Name / Brand String (Function 80000002h,
80000003h, 80000004h)
Functions 8000_0002h, 8000_0003h, and 8000_0004h each return up to 16 ASCII bytes of the
processor name in the EAX, EBX, ECX, and EDX registers. The processor name is constructed
by concatenating each 16-byte ASCII string returned by the three functions. The processor name
is right justified with leading space characters. It is returned in little-endian format and NULL
terminated. The processor name can be a maximum of 48 bytes including the NULL terminator
character. In addition to the processor name, these functions return the maximum supported
speed of the processor in ASCII.
Output of the CPUID Instruction
R
36
Application Note
3.2.3.1
Building the Processor Name
Software must reserve enough space in a byte array to concatenate the three 16 byte ASCII strings
that comprise the processor name. Software must execute each function in sequence. After
sequentially executing each CPUID Brand String function, Software must concatenate EAX,
EBX, ECX, and EDX to create the resulting processor Brand String.
Example 1. Building the Processor Brand String
Processor_Name db
48
dup(0)

MOV
EAX, 80000000h
CPUID
CMP
EAX, 80000004h
; Check if extended
; functions are
;
supported
JB
Not_Supported

MOV
EAX, 80000002h
MOV
DI, OFFSET Processor_Name
CPUID
;
Get
the
first
16
; bytes of the
; processor name

CALL Save_String
MOV
EAX, 80000003h
CPUID
;
Get
the
second
; 16 bytes of the
; processor name

CALL Save_String
MOV
EAX, 80000004h
CPUID
;
Get
the
last
16
; bytes of the
; processor name

CALL Save_String
Not_Supported:
RET
Save_String:
MOV
Dword Ptr [DI], EAX
MOV
Dword Ptr [DI+4], EBX
MOV
Dword Ptr [DI+8], ECX
MOV
Dword Ptr [DI+12], EDX
ADD
DI, 16
RET
Output of the CPUID Instruction
R
Application Note
37
3.2.3.2
Displaying the Processor Name
The processor name is a right justified string padded with leading space characters. When
displaying the processor name string, the display software must skip the leading space characters
and discontinue printing characters when the NULL character is encountered.
Example 2. Displaying the Processor Brand String
CLD
MOV
SI, OFFSET Processor_Name
;
Point
SI
to
the
; name string
Spaces:

LODSB
CMP
AL, ` `
; Skip leading space chars
JE
Spaces
CMP
AL, 0
; Exit if NULL byte
;
encountered
JE
Done
Display_Char:

CALL Display_Character
; Put a char on the
;
output
device
LODSB
CMP
AL, 0
; Exit if NULL byte
;
encountered
JNE
Display_Char
Done:
3.2.4
Reserved (Function 80000005h)
3.2.5
Extended L2 Cache Features (Function 80000006h)
Functions 8000_0006h returns details of the L2 cache in the ECX register. The details returned
are the line size, associativity, and the cache size described in 1024-byte units (see Table 3-16).
Table
3-16. L2 Cache Details
Register Bits
Description
EAX[31:0]
Reserved
EBX[31:0]
Reserved
ECX[31:16]
L2 Cache size described in 1024-byte units.
Output of the CPUID Instruction
R
38
Application Note
Register Bits
Description
ECX[15:12]
L2 Cache Associativity
Encodings
00h
Disabled
01h
Direct
mapped
02h
2-Way
04h
4-Way
06h
8-Way
08h
16-Way
0Fh
Fully
associative
ECX[11:8]
Reserved
ECX[7:0]
L2 Cache Line Size in bytes.
EDX[31:0]
Reserved
3.2.6
Reserved (Function 80000007h)
3.2.7
Virtual and Physical address Sizes (Function 80000008h)
On the Intel
®
CoreTM Solo, Intel
®
CoreTM Duo, Intel
®
CoreTM2 Duo processor family, when EAX
is initialized to a value of 8000_0008h, the CPUID instruction will return the supported virtual
and physical address sizes in EAX. Values in other general registers are reserved. This
information is useful for BIOS to determine processor support for Intel
®
64 Instruction Set
Architecture (Intel
®
64).
Table
3-17. Virtual and Physical Address Size Definitions
Register Bits
Description
EAX[31:16]
Reserved
EAX[15:8]
Virtual Address Size: Number of address bits supported by the processor for a virtual
address.
EAX[7:0]
Physical Address Size: Number of address bits supported by the processor for a
physical address.
EBX[31:0]
Reserved
ECX[31:0]
Reserved
EDX[31:0]
Reserved
§
Processor Serial Number
R
Application Note
39
4
Processor Serial Number
The processor serial number extends the concept of processor identification. Processor serial
number is a 96-bit number accessible through the CPUID instruction. Processor serial number can
be used by applications to identify a processor, and by extension, its system.
The processor serial number creates a software accessible identity for an individual processor.
The processor serial number, combined with other qualifiers, could be applied to user
identification. Applications include membership authentication, data backup/restore protection,
removable storage data protection, managed access to files, or to confirm document exchange
between appropriate users.
Processor serial number is another tool for use in asset management, product tracking, remote
systems load and configuration, or to aid in boot-up configuration. In the case of system service,
processor serial number could be used to differentiate users during help desk access, or track error
reporting. Processor serial number provides an identifier for the processor, but should not be
assumed to be unique in itself. There are potential modes in which erroneous processor serial
numbers may be reported. For example, in the event a processor is operated outside its
recommended operating specifications, (e.g., voltage, frequency, etc.) the processor serial number
may not be correctly read from the processor. Improper BIOS or software operations could yield
an inaccurate processor serial number. These events could lead to possible erroneous or duplicate
processor serial numbers being reported. System manufacturers can strengthen the robustness of
the feature by including redundancy features, or other fault tolerant methods.
Processor serial number used as a qualifier for another independent number could be used to
create an electrically accessible number that is likely to be distinct. Processor serial number is one
building block useful for the purpose of enabling the trusted, connected PC.
4.1
Presence of Processor Serial Number
To determine if the processor serial number feature is supported, the program should set the EAX
register parameter value to "1" and then execute the CPUID instruction as follows:
MOV EAX,
01H
CPUID
After execution of the CPUID instruction, the ECX and EDX register contains the Feature Flags.
If the PSN Feature Flags, (EDX register, bit 18) equals "1", the processor serial number feature is
supported, and enabled. If the PSN Feature Flags equals "0", the processor serial number
feature is either not supported, or disabled in a Pentium III processor.
Processor Serial Number
R
40
Application Note
4.2
Forming the 96-bit Processor Serial Number
The 96-bit processor serial number is the concatenation of three 32-bit entities.
To access the most significant 32-bits of the processor serial number the program should set the
EAX register parameter value to "1" and then execute the CPUID instruction as follows:
MOV EAX,
01H
CPUID
After execution of the CPUID instruction, the EAX register contains the Processor Signature. The
Processor Signature comprises the most significant 32-bits of the processor serial number. The
value in EAX should be saved prior to gathering the remaining 64-bits of the processor serial
number.
To access the remaining 64-bits of the processor serial number the program should set the EAX
register parameter value to "3" and then execute the CPUID instruction as follows:
MOV EAX,
03H
CPUID
After execution of the CPUID instruction, the EDX register contains the middle 32-bits, and the
ECX register contains the least significant 32-bits of the processor serial number. Software may
then concatenate the saved Processor Signature, EDX, and ECX before returning the complete 96-
bit processor serial number.
Processor serial number should be displayed as 6 groups of 4 hex nibbles (Ex. XXXX-XXXX-
XXXX-XXXX-XXXX-XXXX where X represents a hex digit). Alpha hex characters should be
displayed as capital letters.
§
Brand ID and Brand String
R
Application Note
41
5
Brand ID and Brand String
5.1 Brand
ID
Beginning with the Pentium
III
processors, model 8, the Pentium
III
Xeon processors, model 8,
and Celeron processor, model 8, the concept of processor identification is further extended with
the addition of Brand ID. Brand ID is an 8-bit number accessible through the CPUID instruction.
Brand ID may be used by applications to assist in identifying the processor.
Processors that implement the Brand ID feature return the Brand ID in bits 7 through 0 of the
EBX register when the CPUID instruction is executed with EAX=1 (see Table 5-1). Processors
that do not support the feature return a value of 0 in EBX bits 7 through 0.
To differentiate previous models of the Pentium II processor, Pentium II Xeon processor, Celeron
processor, Pentium
III
processor and Pentium
III
Xeon processor, application software relied on
the L2 cache descriptors. In a few cases, the results were ambiguous; for example, software could
not accurately differentiate a Pentium II processor from a Pentium II Xeon processor with a 512-
KB L2 cache. Brand ID eliminates this ambiguity by providing a software accessible value unique
to each processor brand. Table 5-1 shows the values defined for each processor.
5.2 Brand
String
The Brand string is a new extension to the CPUID instruction implemented in some Intel IA-32
processors, including the Pentium 4 processor. Using the brand string feature, future IA-32
architecture based processors will return their ASCII brand identification string and maximum
operating frequency via an extended CPUID instruction. Note that the frequency returned is the
maximum operating frequency that the processor has been qualified for and not the current
operating frequency of the processor.
When CPUID is executed with EAX set to the values listed in , the processor will return an
ASCII brand string in the general-purpose registers as detailed in .
The brand/frequency string is defined to be 48 characters long, 47 bytes will contain characters
and the 48
th
byte is defined to be NULL (0). A processor may return less than the 47 ASCII
characters as long as the string is null terminated and the processor returns valid data when
CPUID is executed with EAX = 80000002h, 80000003h and 80000004h.
The cpuid3a.asm program shows how software forms the brand string (see Example 1). To
determine if the brand string is supported on a processor, software must follow the step below:
1.
Execute the CPUID instruction with EAX=80000000h
2.
If ((returned value in EAX) > 80000000h) then the processor supports the extended CPUID
functions and EAX contains the largest extended function supported.
3.
The processor brand string feature is supported if EAX >= 80000004h
Brand ID and Brand String
R
42
Application Note
Table
5-1. Brand ID, CPUID (EAX=1) Return Values in EBX (bits 7 through 0)
Value
Description
00h
Unsupported
01h
Intel® Celeron® processor
02h
Intel® Pentium® III processor
03h
Intel® Pentium® III Xeon® processor
If processor signature = 000006B1h, then "Intel® Celeron® processor"
04h
Intel® Pentium® III processor
06h
Mobile Intel® Pentium® III Processor-M
07h
Mobile Intel® Celeron® processor
08h
Intel® Pentium® 4 processor
If processor signature is >=00000F13h, then "Intel® Genuine processor"
09h
Intel® Pentium® 4 processor
0Ah
Intel® Celeron® Processor
0Bh
Intel® Xeon® processor
If processor signature is <00000F13h, then "Intel® Xeon® processor MP"
0Ch
Intel® Xeon® processor MP
0Eh
Mobile Intel® Pentium® 4 processor­M
If processor signature is <00000F13h, then "Intel® Xeon® processor"
0Fh
Mobile Intel® Celeron® processor
11h
Mobile Genuine Intel® processor
12h
Intel® Celeron® M processor
13h
Mobile Intel® Celeron® processor
14h
Intel® Celeron® Processor
15h
Mobile Genuine Intel® processor
16h
Intel®
Pentium® M processor
17h
Mobile Intel® Celeron® processor
All other values Reserved
Table
5-2. Processor Brand String Feature
EAX Input
Value
Function
Return Value
80000000h
Largest Extended Function
Supported
EAX=Largest supported extended function number, EBX
= ECX = EDX = Reserved
80000001h
Extended Processor Signature and
Extended Feature Bits
EDX and ECX contain Extended Feature Flags
EAX = EBX = Reserved
80000002h
Processor Brand String
EAX, EBX, ECX, EDX contain ASCII brand string
80000003h
Processor Brand String
EAX, EBX, ECX, EDX contain ASCII brand string
80000004h
Processor Brand String
EAX, EBX, ECX, EDX contain ASCII brand string
§
Usage
Guidelines
R
Application Note
43
6 Usage
Guidelines
This document presents Intel-recommended feature-detection methods. Software should not try to
identify features by exploiting programming tricks, undocumented features, or otherwise
deviating from the guidelines presented in this application note.
The following guidelines are intended to help programmers maintain the widest range of
compatibility for their software.
·
Do not depend on the absence of an invalid opcode trap on the CPUID opcode to detect the
CPUID instruction. Do not depend on the absence of an invalid opcode trap on the PUSHFD
opcode to detect a 32-bit processor. Test the ID flag, as described in Section 2 and shown in
Section 7.
·
Do not assume that a given family or model has any specific feature. For example, do
not assume the family value 5 (Pentium processor) means there is a floating-point unit
on-chip. Use the feature flags for this determination.
·
Do not assume processors with higher family or model numbers have all the features of a
processor with a lower family or model number. For example, a processor with a family
value of 6 (P6 family processor) may not necessarily have all the features of a processor with
a family value of 5.
·
Do not assume that the features in the OverDrive processors are the same as those in the
OEM version of the processor. Internal caches and instruction execution might vary.
·
Do not use undocumented features of a processor to identify steppings or features. For
example, the Intel386 processor A-step had bit instructions that were withdrawn with the B-
step. Some software attempted to execute these instructions and depended on the invalid-
opcode exception as a signal that it was not running on the A-step part. The software failed to
work correctly when the Intel486 processor used the same opcodes for different instructions.
The software should have used the stepping information in the processor signature.
·
Test feature flags individually and do not make assumptions about undefined bits. For
example, it would be a mistake to test the FPU bit by comparing the feature register to a
binary 1 with a compare instruction.
·
Do not assume the clock of a given family or model runs at a specific frequency, and do not
write processor speed-dependent code, such as timing loops. For instance, an OverDrive
Processor could operate at a higher internal frequency and still report the same family and/or
model. Instead, use a combination of the system's timers to measure elapsed time and the
TSC (Time-Stamp Counter) to measure processor core clocks to allow direct calibration of
the processor core. See Section 11 and Example 6 for details.
·
Processor model-specific registers may differ among processors, including in various models
of the Pentium processor. Do not use these registers unless identified for the installed
processor. This is particularly important for systems upgradeable with an OverDrive
processor. Only use Model Specific registers that are defined in the BIOS writers guide for
that processor.
·
Do not rely on the result of the CPUID algorithm when executed in virtual 8086 mode.
·
Do not assume any ordering of model and/or stepping numbers. They are assigned arbitrarily.
Usage Guidelines
R
44
Application Note
·
Do not assume processor serial number is a unique number without further qualifiers.
·
Display processor serial number as 6 groups of 4 hex nibbles (Ex. XXXX-XXXX-XXXX-
XXXX-XXXX-XXXX where X represents a hex digit).
·
Display alpha hex characters as capital letters.
·
A zero in the lower 64 bits of the processor serial number indicate the processor serial
number is invalid, not supported, or disabled on this processor.
§
Proper Identification Sequence
R
Application Note
45
7
Proper Identification Sequence
To identify the processor using the CPUID instructions, software should follow the following
steps.
1.
Determine if the CPUID instruction is supported by modifying the ID flag in the EFLAGS
register. If the ID flag cannot be modified, the processor cannot be identified using the
CPUID instruction.
2.
Execute the CPUID instruction with EAX equal to 80000000h. CPUID function 80000000h
is used to determine if Brand String is supported. If the CPUID function 80000000h returns a
value in EAX greater than or equal to 80000004h the Brand String feature is supported and
software should use CPUID functions 80000002h through 80000004h to identify the
processor.
3.
If the Brand String feature is not supported, execute CPUID with EAX equal to 1. CPUID
function 1 returns the processor signature in the EAX register, and the Brand ID in the EBX
register bits 0 through 7. If the EBX register bits 0 through 7 contain a non-zero value, the
Brand ID is supported. Software should scan the list of Brand IDs (see Table 5-1) to identify
the processor.
4.
If the Brand ID feature is not supported, software should use the processor signature (see) in
conjunction with the cache descriptors (see) to identify the processor.
The cpuid3a.asm program example demonstrates the correct use of the CPUID instruction (see
Example 1). It also shows how to identify earlier processor generations that do not implement the
Brand String, Brand ID, processor signature or CPUID instruction (see Figure 7-1). This program
example contains the following two procedures:
·
get_cpu_type
identifies the processor type. Figure 7-1 illustrates the flow of this
procedure.
·
get_fpu_type
determines the type of floating-point unit (FPU) or math coprocessor
(MCP).
This procedure has been tested with 8086, 80286, Intel386, Intel486, Pentium processor, Pentium
processor with MMX technology, OverDrive processor with MMX technology, Pentium Pro
processors, Pentium II processors, Pentium II Xeon processors, Pentium II Overdrive processors,
Celeron processors, Pentium
III
processors, Pentium
III
Xeon processors and Pentium 4
processors. This program example is written in assembly language and is suitable for inclusion in
a run-time library, or as system calls in operating systems.
Proper Identification Sequence
R
46
Application Note
Figure
7-1. Flow of Processor
get_cpu_type
Procedure
cpu_type=0
Is the
CPUID
instruction
supported
Does the
vendor ID =
"GenuineIntel"
?
?
Is it
an 8086
processor?
Is it
an 80286
processor?
Is it
an 80386
processor?
No
No
No
Yes
cpu_type=2
cpu_type=3
cpu_type>=4
Yes
Yes
Yes
No
cpuid_flag = 1; indicates
CPUID instruction present.
Execute CPUID with input of 0
to get vendor ID string and
input values for EAX.
If highest input value is at least 1,
execute CPUID with input of 1 in
EAX to obtain model, stepping,
family, and features.
Save in cpu_type, stepping,
model, and feature_flags.
Yes
No
end_get_cpu_type
§
Usage Program Examples
R
Application Note
47
8
Usage Program Examples
The cpuid3b.asm or cpuid3.c program examples demonstrate applications that call get_cpu_type
and get_fpu_type procedures and interpret the returned information. This code is shown in
Example 4 and Example 5. The results, which are displayed on the monitor, identify the installed
processor and features. The cpuid3b.asm example is written in assembly language and
demonstrates an application that displays the returned information in the DOS environment. The
cpuid3.c example is written in the C language (see Example 4 and Example 5). Figure 8-1
presents an overview of the relationship between the three program examples.
Figure
8-1. Flow of Processor Identification Extraction Procedure
Main
get_cpu_type*
get_fpu_type
Print
Call cpu_type
Call fpu_type
cpuid3b.ASM
or
cpuid3.C
cpuid3a.ASM
Processor features check
End
§
Usage Program Examples
R
48
Application Note
Alternate Method of Detecting Features
R
Application Note
49
9
Alternate Method of Detecting
Features
Some feature flags indicate support of instruction set extensions (i.e. MMX, SSE and SSE2). The
preferred mechanism for determining support of instruction extensions is through the use of the
CPUID instruction, and testing the feature flags. However, an alternate method for determining
processor support of instruction extensions is to install an exception handler and execute one of
the instructions. If the instruction executes without generating an exception, then the processor
supports that set of instruction extensions. If an exception is raised, and the exception handler is
executed, then those instruction extensions are not supported by the processor. Before installing
the exception handler, the software should execute the CPUID instruction with EAX = 0. If the
CPUID instruction returns the Intel vendor-ID string "GenuineIntel", then software knows that it
can test for the Intel instruction extensions. As long as the CPUID instruction returns the Intel
vendor-ID, this method can be used to support future Intel processors. This method does not
require software to check the family and model.
The features.cpp program is written using the C++ language (see Example 6) and demonstrates
the use of exceptions to determine support of SSE3, SSE2, SSE, and MMX instruction
extensions. Features.cpp performs the following steps:
1. Check that the vendor-ID == "GenuineIntel"
2. Install exception handler for SSE3 test
3. Attempt to execute a SSE3 instruction (haddpd xmm1, xmm2)
4. Install exception handler for SSE2 test
5. Attempt to execute a SSE2 instruction (paddq xmm1, xmm2)
6. Install exception handler for SSE test
7. Attempt to execute a SSE instruction (orps xmm1, xmm2)
8. Install exception handler for MMX test
9. Attempt to execute a MMX instruction (emms)
10. Print supported instruction set extensions.
§
Alternate Method of Detecting Features
R
50
Application Note
Denormals Are Zero
R
Application Note
51
10
Denormals Are Zero
With the introduction of the SSE2 extensions, some Intel Architecture processors have the ability
to convert SSE and SSE2 source operand denormal numbers to zero. This feature is referred to as
Denormals-Are-Zero (DAZ). The DAZ mode is not compatible with IEEE Standard 754. The
DAZ mode is provided to improve processor performance for applications such as streaming
media processing, where rounding a denormal operand to zero does not appreciably affect the
quality of the processed data.
Some processor steppings support SSE2 but do not support the DAZ mode. To determine if a
processor supports the DAZ mode, software must perform the following steps.
1.
Execute the CPUID instruction with an input value of EAX=0 and ensure the vendor-ID
string returned is "GenuineIntel".
2.
Execute the CPUID instruction with EAX=1. This will load the EDX register with the feature
flags.
3.
Ensure that the FXSR feature flag (EDX bit 24) is set. This indicates the processor supports
the FXSAVE and FXRSTOR instructions.
4.
Ensure that the XMM feature flag (EDX bit 25) or the EMM feature flag (EDX bit 26) is set.
This indicates that the processor supports at least one of the SSE/SSE2 instruction sets and its
MXCSR control register.
5.
Zero a 16-byte aligned, 512-byte area of memory. This is necessary since some
implementations of FXSAVE do not modify reserved areas within the image.
6.
Execute an FXSAVE into the cleared area.
7.
Bytes 28-31 of the FXSAVE image are defined to contain the MXCSR_MASK. If this value
is 0, then the processors MXCSR_MASK is 0xFFBF, otherwise MXCSR_MASK is the value
of this dword.
8.
If bit 6 of the MXCSR_MASK is set, then DAZ is supported.
After completing this algorithm, if DAZ is supported, software can enable DAZ mode by setting
bit 6 in the MXCSR register save area and executing the FXRSTOR instruction. Alternately
software can enable DAZ mode by setting bit 6 in the MXCSR by executing the LDMXCSR
instruction. Refer to the chapter titled "Programming with the Streaming SIMD Extensions
(SSE)" in the Intel Architecture Software Developer's Manual volume 1: Basic Architecture.
The assembly language program dazdtect.asm (see Example 7) demonstrates this DAZ detection
algorithm.
§
Denormals Are Zero
R
52
Application Note
Operating
Frequency
R
Application Note
53
11 Operating
Frequency
With the introduction of the Time-Stamp Counter, it is possible for software operating in real
mode or protected mode with ring 0 privilege to calculate the actual operating frequency of the
processor. To calculate the operating frequency, the software needs a reference period. The
reference period can be a periodic interrupt, or another timer that is based on time, and not based
on a system clock. Software needs to read the Time-Stamp Counter (TSC) at the beginning and
ending of the reference period. Software can read the TSC by executing the RDTSC instruction,
or by setting the ECX register to 10h and executing the RDMSR instruction. Both instructions
copy the current 64-bit TSC into the EDX:EAX register pair.
To determine the operating frequency of the processor, software performs the following steps.
The assembly language program frequenc.asm (see Example 8) demonstrates the frequency
detection algorithm.
1.
Execute the CPUID instruction with an input value of EAX=0 and ensure the vendor-ID
string returned is "GenuineIntel".
2.
Execute the CPUID instruction with EAX=1 to load the EDX register with the feature flags.
3.
Ensure that the TSC feature flag (EDX bit 4) is set. This indicates the processor supports the
Time-Stamp Counter and RDTSC instruction.
4.
Read the TSC at the beginning of the reference period.
5.
Read the TSC at the end of the reference period.
6.
Compute the TSC delta from the beginning and ending of the reference period.
7.
Compute the actual frequency by dividing the TSC delta by the reference period.
Actual frequency = (Ending TSC value ­ Beginning TSC value) / reference period
Note:
The measured accuracy is dependent on the accuracy of the reference period. A longer
reference period produces a more accurate result. In addition, repeating the calculation
multiple times may also improve accuracy.
Operating Frequency
R
54
Application Note
Intel processors that support the C0_MCNT (C0 maximum frequency clock count) register
improve on the ability to calculate the C0 state frequency by provide a resetable free running
counter. To use the C0_MCNT register to determine frequency, software should clear the register
by a write of `0' while the core is in a C0 state. Subsequently, at the end of a reference period read
the C0_MCNT register. The actual frequency is calculated by dividing the C0_MCNT register
value by the reference period. See the following steps and assembly language program
frequenc.asm (see Example 8) as reference.
1.
Execute the CPUID instruction with an input value of EAX=0 and ensure the vendor-ID
string returned is "GenuineIntel".
2.
Execute the CPUID instruction with EAX=1 to load the EAX register with the Processor
Signature value.
3.
Ensure that the processor is belonging to Intel Core 2 Duo processors family. This indicates
the processor supports the Maximum Frequency Clock Count.
4.
Clear the C0_MCNT register at the beginning of the reference period.
5.
Read the C0_MCNT register at the end of the reference period.
6.
Compute the actual frequency by dividing the C0_MCNT delta by the reference period.
Actual frequency = Ending C0_MCNT value / reference period
§
Program
Examples
R
Application Note
55
12 Program
Examples
Example 3. Processor Identification Extraction Procedure

;
Filename: cpuid3a.asm
;
Copyright (c) Intel Corporation 1993-2005
;
;
This program has been developed by Intel Corporation. Intel
;
has various intellectual property rights which it may assert
;
under certain circumstances, such as if another
;
manufacturer's processor mis-identifies itself as being
;
"GenuineIntel" when the CPUID instruction is executed.
;
;
Intel specifically disclaims all warranties, express or
;
implied, and all liability, including consequential and other
;
indirect damages, for the use of this program, including
;
liability for infringement of any proprietary rights,
;
and including the warranties of merchantability and fitness
;
for a particular purpose. Intel does not assume any
;
responsibility for any errors which may appear in this program
;
nor any responsibility to update it.
;
;
This code contains two procedures:
;
_get_cpu_type: Identifies processor type in _cpu_type:
; 0=8086/8088
processor
;
2=Intel 286 processor
;
3=Intel386(TM) family processor
;
4=Intel486(TM) family processor
;
5=Pentium(R) family processor
;
6=P6 family of processors
;
F=Pentium 4 family of processors
;
;
_get_fpu_type: Identifies FPU type in _fpu_type:
;
0=FPU not present
; 1=FPU
present
;
2=287 present (only if cpu_type=3)
;
3=387 present (only if cpu_type=3)
;
;
This program has been tested with the Microsoft Developer Studio.
;
This code correctly detects the current Intel 8086/8088,
;
80286, 80386, 80486, Pentium(R) processor, Pentium(R) Pro
;
processor, Pentium(R) II processor, Pentium II Xeon(R) processor,
;
Pentium II Overdrive(R), Intel Celeron processor, Pentium III processor,
;
Pentium III Xeon processor, Pentium 4 processors and
;
Intel(R) Xeon(R) processors.

;
NOTE: When using this code with C program cpuid3.c, 32-bit
Program Examples
R
56
Application Note
;
segments are recommended.

;
To assemble this code with TASM, add the JUMPS directive.
;
jumps
; Uncomment this line for TASM


TITLE
cpuid3a
;
;
comment this line for 32-bit segments
;
DOSSEG
;
;
uncomment the following 2 lines for 32-bit segments
;
; .386
; .model
flat
;
;
comment this line for 32-bit segments
;
.model
small

CPU_ID MACRO
db
0fh
;
Hardcoded
CPUID
instruction
db
0a2h
ENDM

.data
public
_cpu_type
public
_fpu_type
public
_v86_flag
public
_cpuid_flag
public
_intel_CPU
public
_vendor_id
public
_cpu_signature
public
_features_ebx
public
_features_ecx
public
_features_edx
public
_ext_funct_1_eax
public
_ext_funct_1_ebx
public
_ext_funct_1_ecx
public
_ext_funct_1_edx
public
_ext_funct_6_eax
public
_ext_funct_6_ebx
public
_ext_funct_6_ecx
public
_ext_funct_6_edx
public
_ext_funct_8_eax
public
_ext_funct_8_ebx
public
_ext_funct_8_ecx
public
_ext_funct_8_edx
public
_cache_eax
public
_cache_ebx
public
_cache_ecx
Program
Examples
R
Application Note
57
public
_cache_edx
public
_dcp_cache_eax
public
_dcp_cache_ebx
public
_dcp_cache_ecx
public
_dcp_cache_edx
public
_sep_flag
public
_brand_string

_cpu_type
db
0
_fpu_type db
0
_v86_flag db
0
_cpuid_flag
db
0
_intel_CPU
db
0
_sep_flag db
0
_vendor_id
db
"------------"
intel_id
db
"GenuineIntel"
_cpu_signature
dd
0
_features_ebx
dd
0
_features_ecx
dd
0
_features_edx
dd
0
_ext_funct_1_eax dd
0
_ext_funct_1_ebx dd
0
_ext_funct_1_ecx dd
0
_ext_funct_1_edx dd
0
_ext_funct_6_eax dd
0
_ext_funct_6_ebx dd
0
_ext_funct_6_ecx dd
0
_ext_funct_6_edx dd
0
_ext_funct_8_eax dd
0
_ext_funct_8_ebx dd
0
_ext_funct_8_ecx dd
0
_ext_funct_8_edx dd
0
_cache_eax
dd
0
_cache_ebx
dd
0
_cache_ecx
dd
0
_cache_edx
dd
0
_dcp_cache_eax
dd
0
_dcp_cache_ebx
dd
0
_dcp_cache_ecx
dd
0
_dcp_cache_edx
dd
0

fp_status dw
0
_brand_string
db
48 dup (0)

.code
;
;
comment this line for 32-bit segments
;
.8086
;
;
uncomment this line for 32-bit segments
;
Program Examples
R
58
Application Note
; .386

;*********************************************************************
public
_get_cpu_type
_get_cpu_type
proc

;
This procedure determines the type of processor in a system
;
and sets the _cpu_type variable with the appropriate
;
value. If the CPUID instruction is available, it is used
;
to determine more specific details about the processor.
;
All registers are used by this procedure, none are preserved.
;
To avoid AC faults, the AM bit in CR0 must not be set.

;
Intel 8086 processor check
;
Bits 12-15 of the FLAGS register are always set on the
; 8086
processor.

;
;
For 32-bit segments comment the following lines down to the next
;
comment line that says "STOP"
;
check_8086:
pushf
;
push
original
FLAGS
pop
ax
;
get
original
FLAGS
mov
cx, ax
; save original FLAGS
and
ax, 0fffh
; clear bits 12-15 in FLAGS
push
ax
; save new FLAGS value on stack
popf
;
replace
current
FLAGS
value
pushf
;
get
new
FLAGS
pop
ax
; store new FLAGS in AX
and
ax, 0f000h
; if bits 12-15 are set, then
cmp
ax, 0f000h
; processor is an 8086/8088
mov
_cpu_type, 0
; turn on 8086/8088 flag
jne
check_80286
; go check for 80286
push
sp
; double check with push sp
pop
dx
; if value pushed was different
cmp
dx, sp
; means it's really an 8086
jne
end_cpu_type
; jump if processor is 8086/8088
mov
_cpu_type, 10h
; indicate unknown processor
jmp
end_cpu_type

;
Intel 286 processor check
;
Bits 12-15 of the FLAGS register are always clear on the
;
Intel 286 processor in real-address mode.

.286
check_80286:
smsw ax
; save machine status word
and
ax, 1
; isolate PE bit of MSW
mov
_v86_flag, al
; save PE bit to indicate V86

or
cx, 0f000h
; try to set bits 12-15
Program
Examples
R
Application Note
59
push
cx
; save new FLAGS value on stack
popf
;
replace
current
FLAGS
value
pushf
;
get
new
FLAGS
pop
ax
; store new FLAGS in AX
and
ax, 0f000h
; if bits 12-15 are clear
mov
_cpu_type, 2
; processor=80286, turn on 80286 flag
jz
end_cpu_type
; jump if processor is 80286

;
Intel386 processor check
;
The AC bit, bit #18, is a new bit introduced in the EFLAGS
;
register on the Intel486 processor to generate alignment
; faults.
;
This bit cannot be set on the Intel386 processor.

.386
;
; "STOP"
;
;
; it is safe to use 386 instructions
check_80386:
pushfd
;
push
original
EFLAGS
pop
eax
;
get
original
EFLAGS
mov
ecx, eax
; save original EFLAGS
xor
eax, 40000h
; flip AC bit in EFLAGS
push
eax
; save new EFLAGS value on stack
popfd
;
replace
current
EFLAGS
value
pushfd
;
get
new
EFLAGS
pop
eax
; store new EFLAGS in EAX
xor
eax, ecx
; can't toggle AC bit, processor=80386
mov
_cpu_type, 3
; turn on 80386 processor flag
jz
end_cpu_type
; jump if 80386 processor
push
ecx
popfd
; restore AC bit in EFLAGS first

;
Intel486 processor check
;
Checking for ability to set/clear ID flag (Bit 21) in EFLAGS
;
which indicates the presence of a processor with the CPUID
; instruction.

.486
check_80486:
mov
_cpu_type, 4
; turn on 80486 processor flag
mov
eax, ecx
; get original EFLAGS
xor
eax, 200000h
; flip ID bit in EFLAGS
push
eax
; save new EFLAGS value on stack
popfd
;
replace
current
EFLAGS
value
pushfd
;
get
new
EFLAGS
pop
eax
; store new EFLAGS in EAX
xor
eax, ecx
; can't toggle ID bit,
je
end_cpu_type
;
processor=80486

;
Execute CPUID instruction to determine vendor, family,
Program Examples
R
60
Application Note
;
model, stepping and features. For the purpose of this
;
code, only the initial set of CPUID information is saved.

mov
_cpuid_flag, 1
; flag indicating use of CPUID inst.
push
ebx
;
save
registers
push
esi
push
edi

mov
eax, 0
; set up for CPUID instruction
CPU_ID
; get and save vendor ID

mov
dword ptr _vendor_id, ebx
mov
dword ptr _vendor_id[+4], edx
mov
dword ptr _vendor_id[+8], ecx

cmp
dword ptr intel_id, ebx
jne
end_cpuid_type
cmp
dword ptr intel_id[+4], edx
jne
end_cpuid_type
cmp
dword ptr intel_id[+8], ecx
jne
end_cpuid_type
; if not equal, not an Intel processor

mov
_intel_CPU, 1
; indicate an Intel processor
cmp
eax, 1
; make sure 1 is valid input for CPUID
jl
end_cpuid_type
; if not, jump to end

mov
eax,
1
CPU_ID
;
get
family/model/stepping/features

mov
_cpu_signature,
eax
mov
_features_ebx,
ebx
mov
_features_edx,
edx
mov
_features_ecx,
ecx

shr
eax,
8
;
isolate
family
and
eax,
0fh
mov
_cpu_type, al
; set _cpu_type with family
;
Execute CPUID instruction to determine the cache descriptor
; information.

mov
eax, 0
; set up to check the EAX value
CPU_ID
cmp
ax, 2
; Are cache descriptors supported?
jl
end_cpuid_type

mov
eax, 2
; set up to read cache descriptor
CPU_ID
cmp
al, 1
; Is one iteration enough to obtain
jne
end_cpuid_type
;
cache
information?
; This code supports one iteration
; only.
Program
Examples
R
Application Note
61
mov
_cache_eax, eax
; store cache information
mov
_cache_ebx, ebx
; NOTE: for future processors, CPUID
mov
_cache_ecx, ecx
; instruction may need to be run more
mov
_cache_edx,
edx
;
than once to get complete cache
;
information

mov
eax, 0
; set up to check the EAX value
CPU_ID
cmp
ax, 4
; Are deterministic cache parameters supported?
jl
end_cpuid_type

mov
eax, 4
; set up to read deterministic cache params
mov
ecx,
0
CPU_ID
push
eax
and
al, 1Fh
; determine if valid cache parameters read
cmp
al,
00h
;
EAX[4:0]
= 0 indicates invalid cache
pop
eax
je
end_cpuid_type

mov
_dcp_cache_eax, eax
; store deterministic cache information
mov
_dcp_cache_ebx,
ebx
mov
_dcp_cache_ecx, ecx
mov
_dcp_cache_edx,
edx

mov
eax, 80000000h
; check if brand string is supported
CPU_ID
cmp
eax,
80000004h
jbe
end_cpuid_type
; take jump if not supported

mov
eax, 80000001h
; Get the Extended Feature Flags
CPU_ID

mov
_ext_funct_1_eax,
eax
mov
_ext_funct_1_ebx,
ebx
mov
_ext_funct_1_ecx,
ecx
mov
_ext_funct_1_edx,
edx

mov
di, offset _brand_string

mov
eax, 80000002h
; get first 16 bytes of brand string
CPU_ID
mov
dword ptr [di], eax
; save bytes 0 .. 15
mov
dword ptr [di+4], ebx
mov
dword ptr [di+8], ecx
mov
dword ptr [di+12], edx
add
di,
16

mov
eax,
80000003h
CPU_ID
mov
dword ptr [di], eax
; save bytes 16 .. 31
mov
dword ptr [di+4], ebx
Program Examples
R
62
Application Note
mov
dword ptr [di+8], ecx
mov
dword ptr [di+12], edx
add
di,
16

mov
eax,
80000004h
CPU_ID
mov
dword ptr [di], eax
; save bytes 32 .. 47
mov
dword ptr [di+4], ebx
mov
dword ptr [di+8], ecx
mov
dword ptr [di+12], edx

mov
eax, 80000000h
; check if L2 Cache Features supported
CPU_ID
cmp
eax,
80000006h
jbe
end_cpuid_type
; take jump if not supported

mov
_ext_funct_6_eax,
eax
mov
_ext_funct_6_ebx,
ebx
mov
_ext_funct_6_ecx,
ecx
mov
_ext_funct_6_edx,
edx

mov
eax, 80000000h
; check if Address Size function supported
CPU_ID
cmp
eax,
80000008h
jbe
end_cpuid_type
; take jump if not supported

mov
_ext_funct_8_eax,
eax
mov
_ext_funct_8_ebx,
ebx
mov
_ext_funct_8_ecx,
ecx
mov
_ext_funct_8_edx,
edx

end_cpuid_type:
pop
edi
;
restore
registers
pop
esi
pop
ebx
;
;
comment this line for 32-bit segments
;
.8086
end_cpu_type:
ret
_get_cpu_type endp

;*********************************************************************

public
_get_fpu_type
_get_fpu_type
proc

;
This procedure determines the type of FPU in a system
;
and sets the _fpu_type variable with the appropriate value.
;
All registers are used by this procedure, none are preserved.
Program
Examples
R
Application Note
63
; Coprocessor
check
;
The algorithm is to determine whether the floating-point
;
status and control words are present. If not, no
;
coprocessor exists. If the status and control words can
;
be saved, the correct coprocessor is then determined
;
depending on the processor type. The Intel386 processor can
;
work with either an Intel287 NDP or an Intel387 NDP.
;
The infinity of the coprocessor must be checked to determine
;
the correct coprocessor type.

fninit
;
reset
FP
status
word
mov
fp_status, 5a5ah
; initialize temp word to non-zero
fnstsw fp_status
; save FP status word
mov
ax, fp_status
; check FP status word
cmp
al, 0
; was correct status written
mov
_fpu_type, 0
; no FPU present
jne
end_fpu_type

check_control_word:
fnstcw fp_status
; save FP control word
mov
ax, fp_status
; check FP control word
and
ax, 103fh
; selected parts to examine
cmp
ax, 3fh
; was control word correct
mov
_fpu_type,
0
jne
end_fpu_type
; incorrect control word, no FPU
mov
_fpu_type,
1

;
80287/80387 check for the Intel386 processor

check_infinity:
cmp
_cpu_type,
3
jne
end_fpu_type
fld1
; must use default control from FNINIT
fldz
;
form
infinity
fdiv
; 8087/Intel287 NDP say +inf = -inf
fld
st
;
form
negative
infinity
fchs
; Intel387 NDP says +inf <> -inf
fcompp
; see if they are the same
fstsw
fp_status
; look at status from FCOMPP
mov
ax,
fp_status
mov
_fpu_type, 2
; store Intel287 NDP for FPU type
sahf
;
see
if
infinities
matched
jz
end_fpu_type
; jump if 8087 or Intel287 is present
mov
_fpu_type, 3
; store Intel387 NDP for FPU type
end_fpu_type:
ret
_get_fpu_type endp

end
Program Examples
R
64
Application Note
Example 4. Processor Identification Procedure in Assembly Language
; Filename: cpuid3b.asm
;
Copyright (c) Intel Corporation 1993-2005
;
;
This program has been developed by Intel Corporation. Intel
;
has various intellectual property rights which it may assert
;
under certain circumstances, such as if another
;
manufacturer's processor mis-identifies itself as being
;
"GenuineIntel" when the CPUID instruction is executed.
;
;
Intel specifically disclaims all warranties, express or
;
implied, and all liability, including consequential and
;
other indirect damages, for the use of this program,
;
including liability for infringement of any proprietary
;
rights, and including the warranties of merchantability and
;
fitness for a particular purpose. Intel does not assume any
;
responsibility for any errors which may appear in this
;
program nor any responsibility to update it.
;
;
This program contains three parts:
;
Part 1: Identifies processor type in the variable
; _cpu_type:
;
;
Part 2: Identifies FPU type in the variable _fpu_type:
;
;
Part 3: Prints out the appropriate message. This part is
;
specific to the DOS environment and uses the DOS
;
system calls to print out the messages.
;
;
This program has been tested with the Microsoft Developer Studio. If
;
this code is assembled with no options specified and linked
;
with the cpuid3a module, it correctly identifies the current
;
Intel 8086/8088, 80286, 80386, 80486, Pentium(R), Pentium(R) Pro,
;
Pentium(R) II processors, Pentium(R) II Xeon(R) processors, Pentium(R) II
;
Overdrive(R) processors, Intel(R) Celeron(R) processors, Pentium(R) III
;
processors, Pentium(R) III Xeon(R) processors, Pentium(R) 4 processors
;
and Intel(R) Xeon(R) processors DP and MP when executed in the
; real-address
mode.

; NOTE: This code is written using 16-bit Segments

;
To assemble this code with TASM, add the JUMPS directive.
;
jumps
; Uncomment this line for TASM

TITLE
cpuid3b

DOSSEG
.model small

.stack 100h

OP_O MACRO
db
66h
;
hardcoded
operand
override
ENDM
.data
Program
Examples
R
Application Note
65
extrn
_cpu_type:
byte
extrn
_fpu_type:
byte
extrn
_cpuid_flag:
byte
extrn
_intel_CPU:
byte
extrn
_vendor_id:
byte
extrn
_cpu_signature:
dword
extrn
_features_ecx:
dword
extrn
_features_edx:
dword
extrn
_features_ebx:
dword
extrn
_ext_funct_1_eax:
dword
extrn
_ext_funct_1_ebx:
dword
extrn
_ext_funct_1_ecx:
dword
extrn
_ext_funct_1_edx:
dword
extrn
_ext_funct_6_eax:
dword
extrn
_ext_funct_6_ebx:
dword
extrn
_ext_funct_6_ecx:
dword
extrn
_ext_funct_6_edx:
dword
extrn
_ext_funct_8_eax:
dword
extrn
_ext_funct_8_ebx:
dword
extrn
_ext_funct_8_ecx:
dword
extrn
_ext_funct_8_edx:
dword
extrn
_cache_eax:
dword
extrn
_cache_ebx:
dword
extrn
_cache_ecx:
dword
extrn
_cache_edx:
dword
extrn
_dcp_cache_eax:
dword
extrn
_dcp_cache_ebx:
dword
extrn
_dcp_cache_ecx:
dword
extrn
_dcp_cache_edx:
dword
extrn
_brand_string:
byte

;
The purpose of this code is to identify the processor and
;
coprocessor that is currently in the system. The program
;
first determines the processor type. Then it determines
;
whether a coprocessor exists in the system. If a
;
coprocessor or integrated coprocessor exists, the program
;
identifies the coprocessor type. The program then prints
;
the processor and floating point processors present and type.

.code
.8086
start:
mov
ax,
@data
mov
ds, ax
; set segment register
mov
es, ax
; set segment register
and
sp, not 3
; align stack to avoid AC fault
call
_get_cpu_type
; determine processor type
call
_get_fpu_type
call
print

mov
ax,
4c00h
int
21h

;*********************************************************************

extrn
_get_cpu_type:
proc

;*********************************************************************
Program Examples
R
66
Application Note

extrn
_get_fpu_type:
proc

;*********************************************************************

FPU_FLAG equ
0001h
VME_FLAG equ
0002h
DE_FLAG equ
0004h
PSE_FLAG equ
0008h
TSC_FLAG equ
0010h
MSR_FLAG equ
0020h
PAE_FLAG equ
0040h
MCE_FLAG equ
0080h
CX8_FLAG equ
0100h
APIC_FLAG equ
0200h
SEP_FLAG equ
0800h
MTRR_FLAG equ
1000h
PGE_FLAG equ
2000h
MCA_FLAG equ
4000h
CMOV_FLAG equ
8000h
PAT_FLAG equ
10000h
PSE36_FLAG equ
20000h
PSNUM_FLAG equ
40000h
CLFLUSH_FLAG equ 80000h
DTS_FLAG equ
200000h
ACPI_FLAG equ
400000h
MMX_FLAG equ
800000h
FXSR_FLAG equ
1000000h
SSE_FLAG equ
2000000h
SSE2_FLAG equ
4000000h
SS_FLAG equ
8000000h
HTT_FLAG equ
10000000h
TM_FLAG equ
20000000h
IA64_FLAG equ
40000000h
PBE_FLAG equ
80000000h
SSE3_FLAG equ
0001h
MONITOR_FLAG equ 0008h
DS_CPL_FLAG equ 0010h
EIST_FLAG equ
0080h
TM2_FLAG equ
0100h
SSSE3_FLAG equ
0200h
CID_FLAG equ
0400h
CX16_FLAG equ
2000h
XTPR_FLAG equ
04000h
DCA_FLAG equ
040000h

EM64T_FLAG equ
20000000h
XD_FLAG equ
00100000h
SYSCALL_FLAG equ 00000800h
LAHF_FLAG equ
00000001h

.data
id_msg
db
"This system has a$"
cp_error
db
"n unknown processor$"
cp_8086
db
"n 8086/8088 processor$"
cp_286
db
"n 80286 processor$"
cp_386
db
"n 80386 processor$"
Program
Examples
R
Application Note
67
cp_486
db
"n 80486DX, 80486DX2 processor or"
db
" 80487SX math coprocessor$"
cp_486sx
db
"n 80486SX processor$"

fp_8087
db
" and an 8087 math coprocessor$"
fp_287
db
" and an 80287 math coprocessor$"
fp_387
db
" and an 80387 math coprocessor$"

intel486_msg
db
" Genuine Intel486(TM) processor$"
intel486dx_msg
db
" Genuine Intel486(TM) DX processor$"
intel486sx_msg
db
" Genuine Intel486(TM) SX processor$"
inteldx2_msg
db
" Genuine IntelDX2(TM) processor$"
intelsx2_msg
db
" Genuine IntelSX2(TM) processor$"
inteldx4_msg
db
" Genuine IntelDX4(TM) processor$"
inteldx2wb_msg db
" Genuine Write-Back Enhanced"
db
"
IntelDX2(TM)
processor$"
pentium_msg
db
" Genuine Intel(R) Pentium(R) processor$"
pentiumpro_msg db
" Genuine Intel Pentium(R) Pro processor$"

pentiumiimodel3_msg db "
Genuine
Intel(R) Pentium(R) II processor, model 3$"
pentiumiixeon_m5_msg
db
" Genuine Intel(R) Pentium(R) II processor, model 5 or"
db
" Intel(R) Pentium(R) II Xeon(R) processor$"
pentiumiixeon_msg
db
" Genuine Intel(R) Pentium(R) II Xeon(R) processor$"
celeron_msg
db
" Genuine Intel(R) Celeron(R) processor, model 5$"
celeronmodel6_msg
db
" Genuine Intel(R) Celeron(R) processor, model 6$"
celeron_brand
db
" Genuine Intel(R) Celeron(R) processor$"
pentiumiii_msg
db
" Genuine Intel(R) Pentium(R) III processor, model 7 or"
db
" Intel Pentium(R) III Xeon(R) processor, model 7$"
pentiumiiixeon_msg
db
" Genuine Intel(R) Pentium(R) III Xeon(R) processor, model 7$"
pentiumiiixeon_brand
db
" Genuine Intel(R) Pentium(R) III Xeon(R) processor$"
pentiumiii_brand
db
" Genuine Intel(R) Pentium(R) III processor$"
mobile_piii_brand
db
" Genuine Mobile Intel(R) Pentium(R) III Processor-M$"
mobile_icp_brand
db
" Genuine Mobile Intel(R) Celeron(R) processor$"
mobile_P4_brand
db
" Genuine Mobile Intel(R) Pentium(R) 4 processor - M$"
pentium4_brand
db
" Genuine Intel(R) Pentium(R) 4 processor$"
xeon_brand
db
" Genuine Intel(R) Xeon(R) processor$"
xeon_mp_brand
db
" Genuine Intel(R) Xeon(R) processor MP$"
mobile_icp_brand_2
db
" Genuine Mobile Intel(R) Celeron(R) processor$"
mobile_pentium_m_brand
db
" Genuine Intel(R) Pentium(R) M processor$"
mobile_genuine_brand db "
Mobile
Genuine Intel(R) processor$"
mobile_icp_m_brand
db
" Genuine Intel(R) Celeron(R) M processor$"
unknown_msg
db
"n unknown Genuine Intel(R) processor$"

brand_entry struct
brand_value
db
?
brand_string
dw
?
brand_entry ends

brand_table
brand_entry
<01h, offset celeron_brand>
brand_entry
<02h,
offset
pentiumiii_brand>
brand_entry
<03h,
offset
pentiumiiixeon_brand>
brand_entry
<04h,
offset
pentiumiii_brand>
brand_entry
<06h,
offset
mobile_piii_brand>
brand_entry
<07h,
offset
mobile_icp_brand>
brand_entry
<08h,
offset
pentium4_brand>
brand_entry
<09h,
offset
pentium4_brand>
brand_entry
<0Ah,
offset
celeron_brand>
brand_entry
<0Bh, offset xeon_brand>
Program Examples
R
68
Application Note
brand_entry
<0Ch,
offset
xeon_mp_brand>
brand_entry
<0Eh,
offset
mobile_p4_brand>
brand_entry
<0Fh,
offset
mobile_icp_brand>
brand_entry
<11h,
offset mobile_genuine_brand>
brand_entry
<12h,
offset mobile_icp_m_brand>
brand_entry
<13h,
offset
mobile_icp_brand_2>
brand_entry
<14h,
offset
celeron_brand>
brand_entry
<15h,
offset mobile_genuine_brand>
brand_entry
<16h,
offset mobile_pentium_m_brand>
brand_entry
<17h,
offset
mobile_icp_brand_2>

brand_table_size equ
($ - offset brand_table) / (sizeof brand_entry)

; The following 16 entries must stay intact as an array
intel_486_0 dw offset
intel486dx_msg
intel_486_1 dw offset
intel486dx_msg
intel_486_2 dw offset
intel486sx_msg
intel_486_3 dw offset
inteldx2_msg
intel_486_4 dw offset
intel486_msg
intel_486_5 dw offset
intelsx2_msg
intel_486_6 dw offset
intel486_msg
intel_486_7 dw offset
inteldx2wb_msg
intel_486_8 dw offset
inteldx4_msg
intel_486_9 dw offset
intel486_msg
intel_486_a dw offset
intel486_msg
intel_486_b dw offset
intel486_msg
intel_486_c dw offset
intel486_msg
intel_486_d dw offset
intel486_msg
intel_486_e dw offset
intel486_msg
intel_486_f dw
offset
intel486_msg
; end of array

family_msg db 13,10,"Processor Family: $"
model_msg
db
13,10,"Model: $"
stepping_msg
db
13,10,"Stepping: $"
ext_fam_msg
db
13,10," Extended Family: $"
ext_mod_msg
db
13,10," Extended Model: $"
cr_lf
db 13,10,"$"
turbo_msg
db
13,10,"The processor is an OverDrive(R)"
db
"
processor$"
dp_msg
db
13,10,"The processor is the upgrade"
db
" processor in a dual processor system$"
fpu_msg
db
13,10,"The processor contains an on-chip"
db
"
FPU$"
vme_msg
db
13,10,"The processor supports Virtual"
db
"
Mode
Extensions$"
de_msg
db
13,10,"The
processor supports Debugging"
db
"
Extensions$"
pse_msg
db
13,10,"The processor supports Page Size"
db
"
Extensions$"
tsc_msg
db
13,10,"The processor supports Time Stamp"
db
"
Counter$"
msr_msg
db
13,10,"The processor supports Model"
db
"
Specific
Registers$"
pae_msg
db
13,10,"The processor supports Physical"
db
"
Address
Extensions$"
mce_msg
db
13,10,"The processor supports Machine"
db
"
Check
Exceptions$"
Program
Examples
R
Application Note
69
cx8_msg
db
13,10,"The processor supports the"
db
"
CMPXCHG8B
instruction$"
apic_msg
db
13,10,"The processor contains an on-chip"
db
"
APIC$"
sep_msg
db
13,10,"The processor supports Fast System"
db
"
Call$"
no_sep_msg db 13,10,"The
processor does not support Fast"
db
"
System
Call$"
mtrr_msg
db
13,10,"The processor supports Memory Type"
db
"
Range
Registers$"
pge_msg
db
13,10,"The processor supports Page Global"
db
"
Enable$"
mca_msg
db
13,10,"The processor supports Machine"
db
"
Check
Architecture$"
cmov_msg
db
13,10,"The processor supports Conditional"
db
"
Move
Instruction$"
pat_msg
db
13,10,"The processor supports Page Attribute"
db
"
Table$"
pse36_msg db 13,10,"The
processor supports 36-bit Page"
db
"
Size
Extension$"
psnum_msg
db
13,10,"The processor supports the"
db
" processor serial number$"
clflush_msg
db
13,10,"The processor supports the"
db
"
CLFLUSH
instruction$"
dts_msg
db
13,10,"The processor supports the"
db
" Debug Trace Store feature$"
acpi_msg db
13,10,"The processor supports the"
db
" ACPI registers in MSR space$"
mmx_msg
db
13,10,"The processor supports Intel Architecture"
db
"
MMX(TM)
Technology$"
fxsr_msg db
13,10,"The processor supports Fast floating point"
db
" save and restore$"
sse_msg
db
13,10,"The processor supports the Streaming"
db
"
SIMD
extensions$"
sse2_msg
db
13,10,"The processor supports the Streaming"
db
" SIMD extensions 2 instructions$"
ss_msg
db
13,10,"The
processor supports Self-Snoop$"
htt_msg
db
13,10,"The processor supports Hyper-Threading Technology$"
tm_msg
db
13,10,"The processor supports the"
db
"
Thermal
Monitor$"
ia64_msg
db
13,10,"The processor is a member of the"
db
"Intel(R) Itanium(R) processor family executing in IA32 emulation mode$"
pbe_msg
db
13,10,"The processor supports the"
db
" Pending Break Event$"
sse3_msg db
13,10,"The processor supports the Streaming SIMD"
db
" Extensions 3 instructions$"
monitor_msg db 13,10,"The
processor
supports the MONITOR and MWAIT"
db
"
instructions$"
ds_cpl_msg
db
13,10,"The processor supports Debug Store extensions for"
db
" branch message storage by CPL$"
eist_msg
db
13,10,"The processor supports"
db
" Enhanced SpeedStep(TM) Technology$"
tm2_msg
db
13,10,"The processor supports the"
db
" Thermal Monitor 2$"
ssse3_msg
db
13,10,"The processor supports the Supplemental Streaming SIMD"
db
" Extensions 3 instructions$"
cid_msg
db
13,10,"The processor supports L1 Data Cache Context ID$"
cx16_msg
db
13,10,"The processor supports CMPXCHG16B instruction$"
Program Examples
R
70
Application Note
xtpr_msg
db
13,10,"The processor supports transmitting TPR messages$"
dca_msg
db
13,10,"The processor supports the Direct Cache Access feature$"
em64t_msg
db
13,10,"The processor supports Intel(R) Extended Memory 64 Technology$"
xd_bit_msg
db
13,10,"The processor supports the Execute Disable Bit$"
syscall_msg
db
13,10,"The processor supports the SYSCALL & SYSRET instructions$"
lahf_msg db
13,10,"The processor supports the LAHF & SAHF instructions$"

not_intel
db
"t least an 80486 processor."
db
13,10,"It does not contain a Genuine"
db
"Intel part and as a result,"
db
"the",13,10,"CPUID"
db
" detection information cannot be"
db
" determined at this time.$"

ASC_MSG MACRO
msg
LOCAL
ascii_done ;
local
label
add
al,
30h
cmp
al, 39h
; is it 0-9?
jle
ascii_done
add
al,
07h
ascii_done:
mov
byte ptr msg[20], al
mov
dx, offset msg
mov
ah,
9h
int
21h
ENDM

.code
.8086

print proc

;
This procedure prints the appropriate cpuid string and
;
numeric processor presence status. If the CPUID instruction
;
was used, this procedure prints out the CPUID info.
;
All registers are used by this procedure, none are
; preserved.

mov
dx, offset id_msg
; print initial message
mov
ah,
9h
int
21h

cmp
_cpuid_flag, 1
; if set to 1, processor
;
supports
CPUID
instruction
je
print_cpuid_data
; print detailed CPUID info

print_86:
cmp
_cpu_type,
0
jne
print_286
mov
dx, offset cp_8086
mov
ah,
9h
int
21h
cmp
_fpu_type,
0
je
end_print
mov
dx, offset fp_8087
mov
ah,
9h
int
21h
jmp
end_print
Program
Examples
R
Application Note
71

print_286:
cmp
_cpu_type,
2
jne
print_386
mov
dx, offset cp_286
mov
ah,
9h
int
21h
cmp
_fpu_type,
0
je
end_print

print_287:
mov
dx, offset fp_287
mov
ah,
9h
int
21h
jmp
end_print

print_386:
cmp
_cpu_type,
3
jne
print_486
mov
dx, offset cp_386
mov
ah,
9h
int
21h
cmp
_fpu_type,
0
je
end_print
cmp
_fpu_type,
2
je
print_287
mov
dx, offset fp_387
mov
ah,
9h
int
21h
jmp
end_print

print_486:
cmp
_cpu_type,
4
jne
print_unknown
; Intel processors will have
mov
dx, offset cp_486sx
; CPUID instruction
cmp
_fpu_type,
0
je
print_486sx
mov
dx, offset cp_486

print_486sx:
mov
ah,
9h
int
21h
jmp
end_print

print_unknown:
mov
dx, offset cp_error
jmp
print_486sx

print_cpuid_data:
.486
cmp
_intel_CPU, 1
; check for genuine Intel
jne
not_GenuineIntel
; processor

mov
di, offset _brand_string
; brand string supported?
cmp
byte ptr [di], 0
je
print_brand_id

mov
cx, 47
; max brand string length
Program Examples
R
72
Application Note

skip_spaces:
cmp
byte ptr [di], ' '
; skip leading space chars
jne
print_brand_string

inc
di
loop
skip_spaces

print_brand_string:
cmp
cx, 0
; Nothing to print
je
print_brand_id
cmp
byte ptr [di], 0
je
print_brand_id

print_brand_char:
mov
dl, [di]
; print upto the max chars
mov
ah,
2
int
21h

inc
di
cmp
byte ptr [di], 0
je
print_family
loop
print_brand_char
jmp
print_family

print_brand_id:
cmp
_cpu_type,
6
jb
print_486_type
ja
print_pentiumiiimodel8_type

mov
eax, dword ptr _cpu_signature
shr
eax,
4
and
al,
0fh
cmp
al,
8
jae
print_pentiumiiimodel8_type

print_486_type:
cmp
_cpu_type, 4
; if 4, print 80486 processor
jne
print_pentium_type
mov
eax, dword ptr _cpu_signature
shr
eax,
4
and
eax,
0fh
;
isolate
model
mov
dx,
intel_486_0[eax*2]
jmp
print_common

print_pentium_type:
cmp
_cpu_type, 5
; if 5, print Pentium processor
jne
print_pentiumpro_type
mov
dx, offset pentium_msg
jmp
print_common

print_pentiumpro_type:
cmp
_cpu_type, 6
; if 6 & model 1, print Pentium
; Pro processor
jne
print_unknown_type
mov
eax, dword ptr _cpu_signature
shr
eax,
4
and
eax,
0fh
;
isolate
model
Program
Examples
R
Application Note
73
cmp
eax,
3
jge
print_pentiumiimodel3_type
cmp
eax,
1
jne
print_unknown_type
; incorrect model number = 2
mov
dx, offset pentiumpro_msg
jmp
print_common

print_pentiumiimodel3_type:
cmp
eax, 3
; if 6 & model 3, print Pentium
;
II
processor,
model
3
jne
print_pentiumiimodel5_type
mov
dx, offset pentiumiimodel3_msg
jmp
print_common

print_pentiumiimodel5_type:
cmp
eax, 5
; if 6 & model 5, either Pentium
; II processor, model 5, Pentium II
; Xeon processor or Intel Celeron
;
processor,
model
5
je
celeron_xeon_detect

cmp
eax, 7
; If model 7 check cache descriptors
; to determine Pentium III or Pentium III Xeon
jne
print_celeronmodel6_type
celeron_xeon_detect:

; Is it Pentium II processor, model 5, Pentium II Xeon processor, Intel Celeron processor,
; Pentium III processor or Pentium III Xeon processor.

mov
eax, dword ptr _cache_eax
rol
eax,
8
mov
cx,
3

celeron_detect_eax:
cmp
al, 40h
; Is it no L2
je
print_celeron_type
cmp
al, 44h
; Is L2 >= 1M
jae
print_pentiumiixeon_type

rol
eax,
8
loop
celeron_detect_eax

mov
eax, dword ptr _cache_ebx
mov
cx,
4

celeron_detect_ebx:
cmp
al, 40h
; Is it no L2
je
print_celeron_type
cmp
al, 44h
; Is L2 >= 1M
jae
print_pentiumiixeon_type

rol
eax,
8
loop
celeron_detect_ebx

mov
eax, dword ptr _cache_ecx
mov
cx,
4

celeron_detect_ecx:
Program Examples
R
74
Application Note
cmp
al, 40h
; Is it no L2
je
print_celeron_type
cmp
al, 44h
; Is L2 >= 1M
jae
print_pentiumiixeon_type

rol
eax,
8
loop
celeron_detect_ecx

mov
eax, dword ptr _cache_edx
mov
cx,
4

celeron_detect_edx:
cmp
al, 40h
; Is it no L2
je
print_celeron_type
cmp
al, 44h
; Is L2 >= 1M
jae
print_pentiumiixeon_type

rol
eax,
8
loop
celeron_detect_edx

mov
dx, offset pentiumiixeon_m5_msg
mov
eax, dword ptr _cpu_signature
shr
eax,
4
and
eax,
0fh
;
isolate
model
cmp
eax,
5
je
print_common
mov
dx, offset pentiumiii_msg
jmp
print_common

print_celeron_type:
mov
dx, offset celeron_msg
jmp
print_common

print_pentiumiixeon_type:
mov
dx, offset pentiumiixeon_msg
mov
ax, word ptr _cpu_signature
shr
ax,
4
and
eax,
0fh
;
isolate
model
cmp
eax,
5
je
print_common
mov
dx, offset pentiumiiixeon_msg
jmp
print_common

print_celeronmodel6_type:
cmp
eax, 6
; if 6 & model 6, print Intel Celeron
;
processor,
model
6
jne
print_pentiumiiimodel8_type
mov
dx, offset celeronmodel6_msg
jmp
print_common

print_pentiumiiimodel8_type:
cmp
eax, 8
; Pentium III processor, model 8, or
; Pentium III Xeon processor, model 8
jb
print_unknown_type

mov
eax, dword ptr _features_ebx
cmp
al, 0
; Is brand_id supported?
je
print_unknown_type
Program
Examples
R
Application Note
75

mov
di, offset brand_table
; Setup pointer to brand_id table
mov
cx, brand_table_size
; Get maximum entry count

next_brand:
cmp
al, byte ptr [di]
; Is this the brand reported by the processor
je
brand_found

add
di, sizeof brand_entry
; Point to next Brand Defined
loop
next_brand
; Check next brand if the table is not exhausted
jmp
print_unknown_type

brand_found:
mov
eax, dword ptr _cpu_signature
cmp
eax, 06B1h
; Check for Pentium III, model B, stepping 1
jne
not_b1_celeron

mov
dx, offset celeron_brand
; Assume this is a the special case (see Table 9)
cmp
byte ptr[di], 3
; Is this a B1 Celeron?
je
print_common

not_b1_celeron:
cmp
eax,
0F13h
jae
not_xeon_mp
mov
dx, offset xeon_mp_brand
; Early "Intel(R) Xeon(R) processor MP"?
cmp
byte ptr [di], 0Bh
je
print_common

mov
dx, offset xeon_brand
; Early "Intel(R) Xeon(R) processor"?
cmp
byte ptr[di], 0Eh
je
print_common

not_xeon_mp:
mov
dx, word ptr [di+1]
; Load DX with the offset of the brand string
jmp
print_common

print_unknown_type:
mov
dx, offset unknown_msg
; if neither, print unknown
print_common:
mov
ah,
9h
int
21h

; print family, model, and stepping
print_family:
mov
al,
_cpu_type
ASC_MSG
family_msg
; print family msg

mov
eax, dword ptr _cpu_signature
and
ah, 0fh
; Check for Extended Family
cmp
ah,
0fh
jne
print_model
mov
dx, offset ext_fam_msg
mov
ah,
9h
int
21h
shr
eax,
20
mov
ah, al
; Copy extended family into ah
shr
al,
4
Program Examples
R
76
Application Note
and
ax,
0f0fh
add
ah, '0'
; Convert upper nibble to ascii
add
al, '0'
; Convert lower nibble to ascii
push
ax
mov
dl,
al
mov
ah,
2
int
21h
; print upper nibble of ext family
pop
ax
mov
dl,
ah
mov
ah,
2
int
21h
; print lower nibble of ext family

print_model:
mov
eax, dword ptr _cpu_signature
shr
ax,
4
and
al,
0fh
ASC_MSG
model_msg
; print model msg

mov
eax, dword ptr _cpu_signature
and
al, 0f0h
; Check for Extended Model
cmp
ah,
0f0h
jne
print_stepping
mov
dx, offset ext_mod_msg
mov
ah,
9h
int
21h
shr
eax,
16
and
al,
0fh
add
al, '0'
; Convert extended model to ascii
mov
dl,
al
mov
ah,
2
int
21h
; print lower nibble of ext family

print_stepping:
mov
eax, dword ptr _cpu_signature
and
al,
0fh
ASC_MSG
stepping_msg
; print stepping msg

print_upgrade:
mov
eax, dword ptr _cpu_signature
test
ax, 1000h
; check for turbo upgrade
jz
check_dp
mov
dx, offset turbo_msg
mov
ah,
9h
int
21h
jmp
print_features

check_dp:
test
ax, 2000h
; check for dual processor
jz
print_features
mov
dx, offset dp_msg
mov
ah,
9h
int
21h

print_features:
mov
eax, dword ptr _features_edx
and
eax, FPU_FLAG
; check for FPU
jz
check_VME
mov
dx, offset fpu_msg
Program
Examples
R
Application Note
77
mov
ah,
9h
int
21h

check_VME:
mov
eax, dword ptr _features_edx
and
eax, VME_FLAG
; check for VME
jz
check_DE
mov
dx, offset vme_msg
mov
ah,
9h
int
21h

check_DE:
mov
eax, dword ptr _features_edx
and
eax, DE_FLAG
; check for DE
jz
check_PSE
mov
dx, offset de_msg
mov
ah,
9h
int
21h

check_PSE:
mov
eax, dword ptr _features_edx
and
eax, PSE_FLAG
; check for PSE
jz
check_TSC
mov
dx, offset pse_msg
mov
ah,
9h
int
21h

check_TSC:
mov
eax, dword ptr _features_edx
and
eax, TSC_FLAG
; check for TSC
jz
check_MSR
mov
dx, offset tsc_msg
mov
ah,
9h
int
21h

check_MSR:
mov
eax, dword ptr _features_edx
and
eax, MSR_FLAG
; check for MSR
jz
check_PAE
mov
dx, offset msr_msg
mov
ah,
9h
int
21h

check_PAE:
mov
eax, dword ptr _features_edx
and
eax, PAE_FLAG
; check for PAE
jz
check_MCE
mov
dx, offset pae_msg
mov
ah,
9h
int
21h

check_MCE:
mov
eax, dword ptr _features_edx
and
eax, MCE_FLAG
; check for MCE
jz
check_CX8
mov
dx, offset mce_msg
mov
ah,
9h
int
21h
Program Examples
R
78
Application Note

check_CX8:
mov
eax, dword ptr _features_edx
and
eax, CX8_FLAG
; check for CMPXCHG8B
jz
check_APIC
mov
dx, offset cx8_msg
mov
ah,
9h
int
21h

check_APIC:
mov
eax, dword ptr _features_edx
and
eax, APIC_FLAG
; check for APIC
jz
check_SEP
mov
dx, offset apic_msg
mov
ah,
9h
int
21h

check_SEP:
mov
eax, dword ptr _features_edx
and
eax, SEP_FLAG
; Check for Fast System Call
jz
check_MTRR

cmp
_cpu_type, 6
; Determine if Fast System
jne
print_sep
; Calls are supported.

mov
eax, dword ptr _cpu_signature
cmp
al,
33h
jb
print_no_sep

print_sep:
mov
dx, offset sep_msg
mov
ah,
9h
int
21h
jmp
check_MTRR

print_no_sep:
mov
dx, offset no_sep_msg
mov
ah,
9h
int
21h
check_MTRR:
mov
eax, dword ptr _features_edx
and
eax, MTRR_FLAG
; check for MTRR
jz
check_PGE
mov
dx, offset mtrr_msg
mov
ah,
9h
int
21h

check_PGE:
mov
eax, dword ptr _features_edx
and
eax, PGE_FLAG
; check for PGE
jz
check_MCA
mov
dx, offset pge_msg
mov
ah,
9h
int
21h

check_MCA:
mov
eax, dword ptr _features_edx
Program
Examples
R
Application Note
79
and
eax, MCA_FLAG
; check for MCA
jz
check_CMOV
mov
dx, offset mca_msg
mov
ah,
9h
int
21h

check_CMOV:
mov
eax, dword ptr _features_edx
and
eax, CMOV_FLAG
; check for CMOV
jz
check_PAT
mov
dx, offset cmov_msg
mov
ah,
9h
int
21h

check_PAT:
mov
eax, dword ptr _features_edx
and
eax,
PAT_FLAG
jz
check_PSE36
mov
dx, offset pat_msg
mov
ah, 9h
int
21h

check_PSE36:
mov
eax, dword ptr _features_edx
and
eax,
PSE36_FLAG
jz
check_PSNUM
mov
dx, offset pse36_msg
mov
ah,
9h
int
21h

check_PSNUM:
mov
eax, dword ptr _features_edx
and
eax, PSNUM_FLAG
; check for processor serial number
jz
check_CLFLUSH
mov
dx, offset psnum_msg
mov
ah,
9h
int
21h

check_CLFLUSH:
mov
eax, dword ptr _features_edx
and
eax, CLFLUSH_FLAG
; check for Cache Line Flush
jz
check_DTS
mov
dx, offset clflush_msg
mov
ah,
9h
int
21h

check_DTS:
mov
eax, dword ptr _features_edx
and
eax, DTS_FLAG
; check for Debug Trace Store
jz
check_ACPI
mov
dx, offset dts_msg
mov
ah,
9h
int
21h

check_ACPI:
mov
eax, dword ptr _features_edx
and
eax, ACPI_FLAG
; check for processor serial number
jz
check_MMX
Program Examples
R
80
Application Note
mov
dx, offset acpi_msg
mov
ah,
9h
int
21h

check_MMX:
mov
eax, dword ptr _features_edx
and
eax, MMX_FLAG
; check for MMX technology
jz
check_FXSR
mov
dx, offset mmx_msg
mov
ah,
9h
int
21h

check_FXSR:
mov
eax, dword ptr _features_edx
and
eax, FXSR_FLAG
; check for FXSR
jz
check_SSE
mov
dx, offset fxsr_msg
mov
ah,
9h
int
21h

check_SSE:
mov
eax, dword ptr _features_edx
and
eax, SSE_FLAG
; check for Streaming SIMD
jz
check_SSE2
; Extensions
mov
dx, offset sse_msg
mov
ah,
9h
int
21h

check_SSE2:
mov
eax, dword ptr _features_edx
and
eax, SSE2_FLAG
; check for Streaming SIMD
jz
check_SS
; Extensions 2
mov
dx, offset sse2_msg
mov
ah,
9h
int
21h

check_SS:
mov
eax, dword ptr _features_edx
and
eax, SS_FLAG
; check for Self Snoop
jz
check_HTT
mov
dx, offset ss_msg
mov
ah,
9h
int
21h

check_HTT:
mov
eax, dword ptr _features_edx
and
eax, HTT_FLAG
; check for Hyper-Thread Technology
jz
check_IA64

mov
eax, dword ptr _features_ebx
shr
eax, 16
; Place the logical processor count in AL
xor
ah,
ah
;
clear
AH.
mov
ebx, dword ptr _dcp_cache_eax
shr
ebx, 26
; Place core count in BL (originally in EAX[31:26])
and
bx, 3Fh
; clear BL preserving the core count
inc
bl
div
bl
cmp
al,
2
Program
Examples
R
Application Note
81
jl
check_IA64

mov
dx, offset htt_msg
; Supports HTT
mov
ah,
9h
int
21h

check_IA64:
mov
eax, dword ptr _features_edx
and
eax, IA64_FLAG
; check for IA64 capabilites
jz
check_TM
mov
dx, offset ia64_msg
mov
ah,
9h
int
21h

check_TM:
mov
eax, dword ptr _features_edx
and
eax, TM_FLAG
; check for Thermal Monitor
jz
check_PBE
mov
dx, offset tm_msg
mov
ah,
9h
int
21h

check_PBE:
mov
eax, dword ptr _features_edx
and
eax, PBE_FLAG
; check for Pending Break Event
jz
check_sse3
mov
dx, offset pbe_msg
mov
ah,
9h
int
21h

check_sse3:
mov
eax, dword ptr _features_ecx
and
eax, SSE3_FLAG
; check for SSE3 instructions
jz
check_monitor
mov
dx, offset sse3_msg
mov
ah,
9h
int
21h

check_monitor:
mov
eax, dword ptr _features_ecx
and
eax, MONITOR_FLAG
; check for monitor/mwait instructions
jz
check_ds_cpl
mov
dx, offset monitor_msg
mov
ah,
9h
int
21h

check_ds_cpl:
mov
eax, dword ptr _features_ecx
and
eax, DS_CPL_FLAG
; check for Debug Store extensions qualified by CPL
jz
check_EIST
mov
dx, offset ds_cpl_msg
mov
ah,
9h
int
21h

check_EIST:
mov
eax, dword ptr _features_ecx
and
eax, EIST_FLAG
; check for Enhanced SpeedStep Technology
jz
check_TM2
Program Examples
R
82
Application Note
mov
dx, offset eist_msg
mov
ah,
9h
int
21h

check_TM2:
mov
eax, dword ptr _features_ecx
and
eax, TM2_FLAG
; check for Thermal Monitor 2
jz
check_SSSE3
mov
dx, offset tm2_msg
mov
ah,
9h
int
21h

check_SSSE3:
mov
eax, dword ptr _features_ecx
and
eax, SSSE3_FLAG
; check for SSSE3
jz
check_CID
mov
dx, offset ssse3_msg
mov
ah,
9h
int
21h

check_CID:
mov
eax, dword ptr _features_ecx
and
eax, CID_FLAG
; check for L1 Context ID
jz
check_CX16
mov
dx, offset cid_msg
mov
ah,
9h
int
21h

check_CX16:
mov
eax, dword ptr _features_edx
and
eax, CX16_FLAG
; check for CMPXCHG16B
jz
check_XTPR
mov
dx, offset cx16_msg
mov
ah,
9h
int
21h

check_XTPR:
mov
eax, dword ptr _features_ecx
and
eax, XTPR_FLAG
; check for echo Task Priority
jz
check_DCA
mov
dx, offset xtpr_msg
mov
ah,
9h
int
21h

check_DCA:
mov
eax, dword ptr _features_ecx
and
eax, DCA_FLAG
; check for Direct Cache Access
jz
check_LAHF
mov
dx, offset dca_msg
mov
ah,
9h
int
21h

check_LAHF:
mov
eax, dword ptr _ext_funct_1_ecx
and
eax, LAHF_FLAG
; check for LAHF/SAHF instructions
jz
check_SYSCALL
mov
dx, offset LAHF_msg
mov
ah,
9h
Program
Examples
R
Application Note
83
int
21h

check_SYSCALL:
mov
eax, dword ptr _ext_funct_1_edx
and
eax, SYSCALL_FLAG
; check for SYSCALL/SYSRET instructions
jz
check_XD
mov
dx, offset syscall_msg
mov
ah,
9h
int
21h

check_XD:
mov
eax, dword ptr _ext_funct_1_edx
and
eax, XD_FLAG
; check for echo Task Priority
jz
check_EM64T
mov
dx, offset xd_bit_msg
mov
ah,
9h
int
21h

check_EM64T:
mov
eax, dword ptr _ext_funct_1_edx
and
eax, EM64T_FLAG
; check for echo Task Priority
jz
end_print
mov
dx, offset em64t_msg
mov
ah,
9h
int
21h

jmp
end_print

not_GenuineIntel:
mov
dx, offset not_intel
mov
ah,
9h
int
21h

end_print:
mov
dx, offset cr_lf
mov
ah,
9h
int
21h
ret
print endp

end
start
Program Examples
R
84
Application Note
Example 5. Processor Identification Procedure in the C Language

/* FILENAME: CPUID3.C
*/
/* Copyright (c) Intel Corporation 1994-2005
*/
/*
*/
/* This program has been developed by Intel Corporation. Intel has
*/
/* various intellectual property rights which it may assert under
*/
/* certain circumstances, such as if another manufacturer's
*/
/* processor mis-identifies itself as being "GenuineIntel" when
*/
/* the CPUID instruction is executed.
*/
/*
*/
/* Intel specifically disclaims all warranties, express or implied,
*/
/* and all liability, including consequential and other indirect
*/
/* damages, for the use of this program, including liability for
*/
/* infringement of any proprietary rights, and including the
*/
/* warranties of merchantability and fitness for a particular
*/
/* purpose. Intel does not assume any responsibility for any
*/
/* errors which may appear in this program nor any responsibility
*/
/* to update it.
*/
/*
*/
/*
*/
/* This program contains three parts:
*/
/* Part 1: Identifies CPU type in the variable _cpu_type:
*/
/*
*/
/* Part 2: Identifies FPU type in the variable _fpu_type:
*/
/*
*/
/* Part 3: Prints out the appropriate message.
*/
/*
*/
/* This program has been tested with the Microsoft Developer Studio.
*/
/* If this code is compiled with no options specified and linked
*/
/* with the cpuid3a module, it correctly identifies the current
*/
/* Intel 8086/8088, 80286, 80386, 80486, Pentium(R), Pentium(R) Pro,
*/
/* Pentium(R) II, Pentium(R) II Xeon(R), Pentium(R) II OverDrive(R),
*/
/* Intel(R) Celeron(R), Pentium(R) III processors, Pentium(R) III Xeon(R)
*/
/* processors, Pentium(R) 4 processors and Intel(R) Xeon(R) processors
*/

#define FPU_FLAG
0x0001
#define VME_FLAG
0x0002
#define DE_FLAG
0x0004
#define PSE_FLAG
0x0008
#define TSC_FLAG
0x0010
#define MSR_FLAG
0x0020
#define PAE_FLAG
0x0040
#define MCE_FLAG
0x0080
#define CX8_FLAG
0x0100
#define APIC_FLAG
0x0200
#define SEP_FLAG
0x0800
#define MTRR_FLAG
0x1000
#define PGE_FLAG
0x2000
#define MCA_FLAG
0x4000
#define CMOV_FLAG
0x8000
#define PAT_FLAG
0x10000
#define PSE36_FLAG
0x20000
#define PSNUM_FLAG
0x40000
#define CLFLUSH_FLAG 0x80000
#define DTS_FLAG
0x200000
#define ACPI_FLAG
0x400000
#define MMX_FLAG
0x800000
#define FXSR_FLAG
0x1000000
#define SSE_FLAG
0x2000000
#define SSE2_FLAG
0x4000000
#define SS_FLAG
0x8000000
#define HTT_FLAG
0x10000000
#define TM_FLAG
0x20000000
#define IA64_FLAG
0x40000000
Program
Examples
R
Application Note
85
#define PBE_FLAG
0x80000000
#define SSE3_FLAG
0x0001
#define MONITOR_FLAG 0x0008
#define DS_CPL_FLAG
0x0010
#define EIST_FLAG
0x0080
#define TM2_FLAG
0x0100
#define SSSE3_FLAG
0x0200
#define CID_FLAG
0x0400
#define CX16_FLAG
0x2000
#define XTPR_FLAG
0x4000
#define DCA_FLAG
0x40000

#define LAHF_FLAG
0x00000001

#define SYSCALL_FLAG 0x00000800
#define XD_FLAG
0x00100000
#define EM64T_FLAG
0x20000000


extern char cpu_type;
extern char fpu_type;
extern char cpuid_flag;
extern char intel_CPU;
extern char vendor_id[12];
extern long cpu_signature;
extern long features_ecx;
extern long features_edx;
extern long features_ebx;
extern long cache_eax;
extern long cache_ebx;
extern long cache_ecx;
extern long cache_edx;
extern long dcp_cache_eax;
extern long dcp_cache_ebx;
extern long dcp_cache_ecx;
extern long dcp_cache_edx;
extern char brand_string[48];
extern int brand_id;

long cache_temp;
long celeron_flag;
long pentiumxeon_flag;

struct brand_entry {
long brand_value;
char *brand_string;
};

#define brand_table_size 15

struct brand_entry brand_table[brand_table_size] = {
0x01, " Genuine Intel(R) Celeron(R) processor",
0x02, " Genuine Intel(R) Pentium(R) III processor",
0x03, " Genuine Intel(R) Pentium(R) III Xeon(R) processor",
0x04, " Genuine Intel(R) Pentium(R) III processor",
0x06, " Genuine Mobile Intel(R) Pentium(R) III Processor - M",
0x07, " Genuine Mobile Intel(R) Celeron(R) processor",
0x08, " Genuine Intel(R) Pentium(R) 4 processor",
0x09, " Genuine Intel(R) Pentium(R) 4 processor",
0x0A, " Genuine Intel(R) Celeron(R) processor",
0x0B, " Genuine Intel(R) Xeon(R) processor",
0x0C, " Genuine Intel(R) Xeon(R) Processor MP",
0x0E, " Genuine Mobile Intel(R) Pentium(R) 4 Processor - M",
0x0F, " Genuine Mobile Intel(R) Celeron(R) processor",
0x11, " Mobile Genuine Intel(R) processor",
0x12, " Genuine Mobile Intel(R) Celeron(R) M processor",
0x13, " Genuine Mobile Intel(R) Celeron(R) processor",
0x14, " Genuine Intel(R) Celeron(R) processor",
Program Examples
R
86
Application Note
0x15, " Mobile Genuine Intel(R) processor",
0x16, " Genuine Intel(R) Pentium(R) M processor"
0x17, " Genuine Mobile Intel(R) Celeron(R) processor",
};


int main() {
get_cpu_type();
get_fpu_type();
print();
return(0);
}

int print() {
int brand_index = 0;

printf("This system has a");
if (cpuid_flag == 0) {
switch (cpu_type) {
case 0:
printf("n 8086/8088 processor");
if (fpu_type) printf(" and an 8087 math coprocessor");
break;
case 2:
printf("n 80286 processor");
if (fpu_type) printf(" and an 80287 math coprocessor");
break;
case 3:
printf("n 80386 processor");
if (fpu_type == 2)
printf(" and an 80287 math coprocessor");
else if (fpu_type)
printf(" and an 80387 math coprocessor");
break;
case 4:
if (fpu_type)
printf("n 80486DX, 80486DX2 processor or 80487SX math coprocessor");
else
printf("n 80486SX processor");
break;
default:
printf("n unknown processor");
}
}
else {
/* using cpuid instruction */
if (intel_CPU) {
if (brand_string[0]) {
brand_index = 0;
while ((brand_string[brand_index] == ' ') && (brand_index < 48))
brand_index++;
if (brand_index != 48)
printf(" %s", &brand_string[brand_index]);
}
else if (cpu_type == 4) {
switch ((cpu_signature>>4) & 0xf) {
case 0:
case 1:
printf(" Genuine Intel486(TM) DX processor");
break;
case 2:
printf(" Genuine Intel486(TM) SX processor");
break;
case 3:
printf(" Genuine IntelDX2(TM) processor");
break;
case 4:
printf(" Genuine Intel486(TM) processor");
Program
Examples
R
Application Note
87
break;
case 5:
printf(" Genuine IntelSX2(TM) processor");
break;
case 7:
printf(" Genuine Write-Back Enhanced \
IntelDX2(TM) processor");
break;
case 8:
printf(" Genuine IntelDX4(TM) processor");
break;
default:
printf(" Genuine Intel486(TM) processor");
}
}
else if (cpu_type == 5)
printf(" Genuine Intel Pentium(R) processor");
else if ((cpu_type == 6) && (((cpu_signature >> 4) & 0xf) == 1))
printf(" Genuine Intel Pentium(R) Pro processor");
else if ((cpu_type == 6) && (((cpu_signature >> 4) & 0xf) == 3))
printf(" Genuine Intel Pentium(R) II processor, model 3");
else if (((cpu_type == 6) && (((cpu_signature >> 4) & 0xf) == 5)) ||
((cpu_type == 6) && (((cpu_signature >> 4) & 0xf) == 7)))
{
celeron_flag = 0;
pentiumxeon_flag = 0;
cache_temp = cache_eax & 0xFF000000;
if (cache_temp == 0x40000000)
celeron_flag = 1;
if ((cache_temp >= 0x44000000) && (cache_temp <= 0x45000000))
pentiumxeon_flag = 1;

cache_temp = cache_eax & 0xFF0000;
if (cache_temp == 0x400000)
celeron_flag = 1;
if ((cache_temp >= 0x440000) && (cache_temp <= 0x450000))
pentiumxeon_flag = 1;

cache_temp = cache_eax & 0xFF00;
if (cache_temp == 0x4000)
celeron_flag = 1;
if ((cache_temp >= 0x4400) && (cache_temp <= 0x4500))
pentiumxeon_flag = 1;

cache_temp = cache_ebx & 0xFF000000;
if (cache_temp == 0x40000000)
celeron_flag = 1;
if ((cache_temp >= 0x44000000) && (cache_temp <=0x45000000))
pentiumxeon_flag = 1;

cache_temp = cache_ebx & 0xFF0000;
if (cache_temp == 0x400000)
celeron_flag = 1;
if ((cache_temp >= 0x440000) && (cache_temp <= 0x450000))
pentiumxeon_flag = 1;

cache_temp = cache_ebx & 0xFF00;
if (cache_temp == 0x4000)
celeron_flag = 1;
if ((cache_temp >= 0x4400) && (cache_temp <= 0x4500))
pentiumxeon_flag = 1;

cache_temp = cache_ebx & 0xFF;
if (cache_temp == 0x40)
celeron_flag = 1;
if ((cache_temp >= 0x44) && (cache_temp <= 0x45))
pentiumxeon_flag = 1;
Program Examples
R
88
Application Note
cache_temp = cache_ecx & 0xFF000000;
if (cache_temp == 0x40000000)
celeron_flag = 1;
if ((cache_temp >= 0x44000000) && (cache_temp <= 0x45000000))
pentiumxeon_flag = 1;

cache_temp = cache_ecx & 0xFF0000;
if (cache_temp == 0x400000)
celeron_flag = 1;
if ((cache_temp >= 0x440000) && (cache_temp <= 0x450000))
pentiumxeon_flag = 1;

cache_temp = cache_ecx & 0xFF00;
if (cache_temp == 0x4000)
celeron_flag = 1;
if ((cache_temp >= 0x4400) && (cache_temp <= 0x4500))
pentiumxeon_flag = 1;

cache_temp = cache_ecx & 0xFF;
if (cache_temp == 0x40)
celeron_flag = 1;
if ((cache_temp >= 0x44) && (cache_temp <= 0x45))
pentiumxeon_flag = 1;

cache_temp = cache_edx & 0xFF000000;
if (cache_temp == 0x40000000)
celeron_flag = 1;
if ((cache_temp >= 0x44000000) && (cache_temp <= 0x45000000))
pentiumxeon_flag = 1;

cache_temp = cache_edx & 0xFF0000;
if (cache_temp == 0x400000)
celeron_flag = 1;
if ((cache_temp >= 0x440000) && (cache_temp <= 0x450000))
pentiumxeon_flag = 1;

cache_temp = cache_edx & 0xFF00;
if (cache_temp == 0x4000)
celeron_flag = 1;
if ((cache_temp >= 0x4400) && (cache_temp <= 0x4500))
pentiumxeon_flag = 1;

cache_temp = cache_edx & 0xFF;
if (cache_temp == 0x40)
celeron_flag = 1;
if ((cache_temp >= 0x44) && (cache_temp <= 0x45))
pentiumxeon_flag = 1;

if (celeron_flag == 1)
printf(" Genuine Intel Celeron(R) processor, model 5");
else
{
if (pentiumxeon_flag == 1) {
if (((cpu_signature >> 4) & 0x0f) == 5)
printf(" Genuine Intel Pentium(R) II Xeon(R) processor");
else
printf(" Genuine Intel Pentium(R) III Xeon(R) processor,");
printf(" model 7");
}
else {
if (((cpu_signature >> 4) & 0x0f) == 5) {
printf(" Genuine Intel Pentium(R) II processor, model 5 ");
printf("or Intel Pentium(R) II Xeon(R) processor");
}
else {
printf(" Genuine Intel Pentium(R) III processor, model 7");
printf(" or Intel Pentium(R) III Xeon(R) processor,");
printf(" model 7");
Program
Examples
R
Application Note
89
}
}
}
}
else if ((cpu_type == 6) && (((cpu_signature >> 4) & 0xf) == 6))
printf(" Genuine Intel Celeron(R) processor, model 6");
else if ((features_ebx & 0xff) != 0) {
while ((brand_index < brand_table_size) &&
((features_ebx & 0xff) != brand_table[brand_index].brand_value))
brand_index++;
if (brand_index < brand_table_size) {
if ((cpu_signature == 0x6B1) &&
(brand_table[brand_index].brand_value == 0x3))
printf(" Genuine Intel(R) Celeron(R) processor");
else if ((cpu_signature < 0xF13) &&
(brand_table[brand_index].brand_value == 0x0B))
printf(" Genuine Intel(R) Xeon(R) processor MP");
else if ((cpu_signature < 0xF13) &&
(brand_table[brand_index].brand_value == 0x0E))
printf(" Genuine Intel(R) Xeon(R) processor");
else
printf("%s", brand_table[brand_index].brand_string);
}
else
printf("n unknown Genuine Intel processor");
}
else
printf("n unknown Genuine Intel processor");
printf("\nProcessor Family: %X", cpu_type);
if (cpu_type == 0xf)
printf("\n Extended Family: %x",(cpu_signature>>20)&0xff);
printf("\nModel: %X", (cpu_signature>>4)&0xf);
if (((cpu_signature>>4) & 0xf) == 0xf)
printf("\n Extended Model: %x",(cpu_signature>>16)&0xf);
printf("\nStepping: %X\n", cpu_signature&0xf);
if (cpu_signature & 0x1000)
printf("\nThe processor is an OverDrive(R) processor");
else if (cpu_signature & 0x2000)
printf("\nThe processor is the upgrade processor in a dual processor system");
if (features_edx & FPU_FLAG)
printf("\nThe processor contains an on-chip FPU");
if (features_edx & VME_FLAG)
printf("\nThe processor supports Virtual Mode Extensions");
if (features_edx & DE_FLAG)
printf("\nThe processor supports the Debugging Extensions");
if (features_edx & PSE_FLAG)
printf("\nThe processor supports Page Size Extensions");
if (features_edx & TSC_FLAG)
printf("\nThe processor supports Time Stamp Counter");
if (features_edx & MSR_FLAG)
printf("\nThe processor supports Model Specific Registers");
if (features_edx & PAE_FLAG)
printf("\nThe processor supports Physical Address Extension");
if (features_edx & MCE_FLAG)
printf("\nThe processor supports Machine Check Exceptions");
if (features_edx & CX8_FLAG)
printf("\nThe processor supports the CMPXCHG8B instruction");
if (features_edx & APIC_FLAG)
printf("\nThe processor contains an on-chip APIC");
if (features_edx & SEP_FLAG) {
if ((cpu_type == 6) && ((cpu_signature & 0xff) < 0x33))
printf("\nThe processor does not support the Fast System Call");
else
printf("\nThe processor supports the Fast System Call");
}
if (features_edx & MTRR_FLAG)
printf("\nThe processor supports the Memory Type Range Registers");
if (features_edx & PGE_FLAG)
Program Examples
R
90
Application Note
printf("\nThe processor supports Page Global Enable");
if (features_edx & MCA_FLAG)
printf("\nThe processor supports the Machine Check Architecture");
if (features_edx & CMOV_FLAG)
printf("\nThe processor supports the Conditional Move Instruction");
if (features_edx & PAT_FLAG)
printf("\nThe processor supports the Page Attribute Table");
if (features_edx & PSE36_FLAG)
printf("\nThe processor supports 36-bit Page Size Extension");
if (features_edx & PSNUM_FLAG)
printf("\nThe processor supports the processor serial number");
if (features_edx & CLFLUSH_FLAG)
printf("\nThe processor supports the CLFLUSH instruction");
if (features_edx & DTS_FLAG)
printf("\nThe processor supports the Debug Trace Store feature");
if (features_edx & ACPI_FLAG)
printf("\nThe processor supports ACPI registers in MSR space");
if (features_edx & MMX_FLAG)
printf("\nThe processor supports Intel Architecture MMX(TM) technology");
if (features_edx & FXSR_FLAG)
printf("\nThe processor supports the Fast floating point save and restore");
if (features_edx & SSE_FLAG)
printf("\nThe processor supports the Streaming SIMD extensions to the Intel Architecture");
if (features_edx & SSE2_FLAG)
printf("\nThe processor supports the Streaming SIMD extensions 2 instructions");
if (features_edx & SS_FLAG)
printf("\nThe processor supports Self-Snoop");
if ((features_edx & HTT_FLAG) &&
(((features_ebx >> 16) & 0x0FF) / (((dcp_cache_eax >> 26) & 0x3F) + 1) > 1))
printf("\nThe processor supports Hyper-Threading Technology");
if (features_edx & TM_FLAG)
printf("\nThe processor supports the Thermal Monitor");
if (features_edx & IA64_FLAG)
printf("\n%s\n%s", "The processor is a member of the Intel(R) Itanium(R) processor family ",
"executing IA32 emulation mode");
if (features_edx & PBE_FLAG)
printf("\nThe processor supports Pending Break Event signaling");
if (features_ecx & SSE3_FLAG)
printf("\nThe processor supports the Streaming SIMD extensions 3 instructions");
if (features_ecx & MONITOR_FLAG)
printf("\nThe processor supports the MONITOR and MWAIT instructions");
if (features_ecx & DS_CPL_FLAG)
printf("\nThe processor supports Debug Store extensions for branch message storage by CPL");
if (features_ecx & EIST_FLAG)
printf("\nThe processor supports Enhanced SpeedStep(TM) Technology");
if (features_ecx & TM2_FLAG)
printf("\nThe processor supports the Thermal Monitor 2");
if (features_ecx & SSSE3_FLAG)
printf("\nThe processor supports the Supplemental Streaming SIMD extensions 3 instructions");
if (features_ecx & CID_FLAG)
printf("\nThe processor supports L1 Data Cache Context ID");
if (features_ecx & CX16_FLAG)
printf("\nThe processor supports the CMPXCHG16B instruction");
if (features_ecx & XTPR_FLAG)
printf("\nThe processor supports transmitting TPR messages");
if (features_ecx & DCA_FLAG)
printf("\nThe processor supports the Direct Cache Access feature");
if (ext_funct_1_ecx & LAHF_FLAG)
printf("\nThe processor supports the LAHF & SAHF instructions");
if (ext_funct_1_edx & SYSCALL_FLAG)
printf("\nThe processor supports the SYSCALL & SYSRET instructions");
if (ext_funct_1_edx & XD_FLAG)
printf("\nThe processor supports the Execute Disable Bit ");
if (ext_funct_1_edx & EM64T_FLAG)
printf("\nThe processor supports Intel(R) Extended Memory 64 Technology ");
}
else {
printf("t least an 80486 processor. ");
Program
Examples
R
Application Note
91
printf("\nIt does not contain a Genuine Intel part and as a result, the ");
printf("\nCPUID detection information cannot be determined at this time.");
}
}
printf("\n");
return(0);
}
Program Examples
R
92
Application Note
Example 6. Instruction Extension Detection Using Exception Handlers

// FILENAME: FEATURES.CPP
// Copyright (c) Intel Corporation 2000-2005
//
// This program has been developed by Intel Corporation. Intel has
// various intellectual property rights which it may assert under
// certain circumstances, such as if another manufacturer's
// processor mis-identifies itself as being "GenuineIntel" when
// the CPUID instruction is executed.
//
// Intel specifically disclaims all warranties, express or implied,
// and all liability, including consequential and other indirect
// damages, for the use of this program, including liability for
// infringement of any proprietary rights, and including the
// warranties of merchantability and fitness for a particular
// purpose. Intel does not assume any responsibility for any
// errors which may appear in this program nor any responsibility
// to update it.
//
#include "stdio.h"
#include "string.h"
#include "excpt.h"

// The follow code sample demonstrate using exception handlers to identify available IA-32 features,
// The sample code Identifies IA-32 features such as support for Streaming SIMD Extensions 3,
// Streaming SIMD Extensions 2 (SSE2), support for Streaming SIMD Extensions (SSE),
// support for MMX (TM) instructions.
// This technique can be used safely to determined IA-32 features and provide
// forward compatibility to run optimally on future IA-32 processors.
// Please note that the technique of trapping invalid opcodes is not suitable
// for identifying the processor family and model.

int main(int argc, char* argv[])
{
char sSupportSSE3[80]="Don't know";
char sSupportSSE2[80]="Don't know";
char sSupportSSE[80]="Don't know";
char sSupportMMX[80]="Don't know";
// To identify whether SSE3, SSE2, SSE, or MMX instructions are supported on an x86 compatible
// processor in a fashion that will be compatible to future IA-32 processors,
// The following tests are performed in sequence: (This sample code will assume cpuid
//
instruction is supported by the target processor.)
// 1. Test whether target processor is a Genuine Intel processor, if yes
// 2. Test if executing an SSE3 instruction would cause an exception, if no exception occurs,
//
SSE3 is supported; if exception occurs,
// 3. Test if executing an SSE2 instruction would cause an exception, if no exception occurs,
//
SSE2 is supported; if exception occurs,
// 4. Test if executing an SSE instruction would cause an exception, if no exception occurs,
//
SSE is supported; if exception occurs,
// 5. Test if executing an MMX instruction would cause an exception, if no exception occurs,
//
MMX instruction is supported,
//
if exception occurs, MMX instruction is not supported by this processor.

// For clarity, the following stub function "IsGenuineIntelProcessor()" is not shown in this example,
Program
Examples
R
Application Note
93

// The function "IsGenuineIntelProcessor()" can be adapted from the sample code implementation
// of the assembly procedure "_get_cpu_type". The purpose of this stub function is to examine
// whether the Vendor ID string, which is returned when executing
// cpuid instruction with EAX = 0, indicates the processor is a genuine Intel processor.

if
(IsGenuineIntelProcessor())
{
// First, execute an SSE3 instruction to see whether an exception occurs

__try
{
__asm
{
haddpd xmm1, xmm2
// this is an instruction available in SSE3
// _emit 0x66 __asm _emit 0x0F __asm _emit 0x7C __asm _emit 0xCA

strcpy(&sSupportSSE3[0], "Yes");
// No exception executing an SSE3 instruction
}

__except( EXCEPTION_EXECUTE_HANDLER ) // SSE3 exception handler
{
// exception occurred when executing an SSE3 instruction
strcpy(&sSupportSSE3[0],
"No");
}

// Second, execute an SSE2 instruction to see whether an exception occurs

__try
{
__asm
{
paddq xmm1, xmm2
// this is an instruction available in SSE2
}
strcpy(&sSupportSSE2[0], "Yes");
// No exception executing an SSE2 instruction
}

__except( EXCEPTION_EXECUTE_HANDLER ) // SSE2 exception handler
{
// exception occurred when executing an SSE2 instruction
strcpy(&sSupportSSE2[0],
"No");
}

// Third, execute an SSE instruction to see whether an exception occurs

__try
{
__asm
{
orps
xmm1,
xmm2
//
this
is an instruction available in SSE
//__asm
_emit
0x66
__asm
_emit
0x0f __asm _emit 0x57 __asm _emit 0xc0
}
strcpy(&sSupportSSE[0], "Yes"); // no exception executing an SSE instruction
}

__except( EXCEPTION_EXECUTE_HANDLER )
// SSE exception handler
{
// exception occurred when executing an SSE instruction
strcpy(&sSupportSSE[0],
"No");
}
Program Examples
R
94
Application Note
// Fourth, execute an MMX instruction to see whether an exception occurs

__try
{
__asm
{
emms
// this is an instruction available in MMX
}
strcpy(&sSupportMMX[0],
"Yes");
//
no exception executing an MMX instruction
}

__except( EXCEPTION_EXECUTE_HANDLER )
// MMX exception handler
{
// exception occurred when executing an MMX instruction
strcpy(&sSupportMMX[0],
"No");
}
}

printf("This Processor supports the following instruction extensions: \n");
printf("SSE3 instruction: \t\t%s \n", &sSupportSSE3[0]);
printf("SSE2 instruction: \t\t%s \n", &sSupportSSE2[0]);
printf("SSE instruction: \t\t%s \n", &sSupportSSE[0]);
printf("MMX instruction: \t\t%s \n", &sSupportMMX[0]);
return
0;
}
Program
Examples
R
Application Note
95
Example 7. Detecting Denormals-Are-Zero Support

;
Filename: DAZDTECT.ASM
;
Copyright (c) Intel Corporation 2001-2005
;
;
This program has been developed by Intel Corporation. Intel
;
has various intellectual property rights which it may assert
;
under certain circumstances, such as if another
;
manufacturer's processor mis-identifies itself as being
;
"GenuineIntel" when the CPUID instruction is executed.
;
;
Intel specifically disclaims all warranties, express or
;
implied, and all liability, including consequential and other
;
indirect damages, for the use of this program, including
;
liability for infringement of any proprietary rights,
;
and including the warranties of merchantability and fitness
;
for a particular purpose. Intel does not assume any
;
responsibility for any errors which may appear in this program
;
nor any responsibility to update it.
;
;
This example assumes the system has booted DOS.
;
This program runs in Real mode.
;
;************************************************************************
;
;
This program was assembled using MASM 6.14.8444.
;
;
This program performs the following 8 steps to determine if the
;
processor supports the SSE/SSE2 DAZ mode.
;
; Step 1. Execute the CPUID instruction with an input value of EAX=0 and
;
ensure the vendor-ID string returned is "GenuineIntel".
;
; Step 2. Execute the CPUID instruction with EAX=1. This will load the
;
EDX register with the feature flags.
;
; Step 3. Ensure that the FXSR feature flag (EDX bit 24) is set.
;
This indicates the processor supports the FXSAVE and FXRSTOR
; instructions.
;
; Step 4. Ensure that the XMM feature flag (EDX bit 25) or the EMM feature
;
flag (EDX bit 26) is set. This indicates that the processor supports
;
at least one of the SSE/SSE2 instruction sets and its MXCSR control
; register.
;
; Step 5. Zero a 16-byte aligned, 512-byte area of memory.
;
This is necessary since some implementations of FXSAVE do not
;
modify reserved areas within the image.
;
; Step 6. Execute an FXSAVE into the cleared area.
;
; Step 7. Bytes 28-31 of the FXSAVE image are defined to contain the
;
MXCSR_MASK. If this value is 0, then the processor's MXCSR_MASK
;
is 0xFFBF, otherwise MXCSR_MASK is the value of this dword.
;
; Step 8. If bit 6 of the MXCSR_MASK is set, then DAZ is supported.
;
;************************************************************************

.DOSSEG
.MODEL small, c
.STACK


; Data segment
Program Examples
R
96
Application Note

.DATA

buffer
DB
512+16 DUP (0)

not_intel
DB
"This is not an Genuine Intel processor.", 0Dh, 0Ah, "$"
noSSEorSSE2
DB
"Neither SSE or SSE2 extensions are supported.", 0Dh, 0Ah, "$"
no_FXSAVE
DB
"FXSAVE not supported.", 0Dh, 0Ah, "$"
daz_mask_clear
DB
"DAZ bit in MXCSR_MASK is zero (clear).", 0Dh, 0Ah, "$"
no_daz
DB
"DAZ mode not supported.", 0Dh, 0Ah, "$"
supports_daz
DB
"DAZ mode supported.", 0Dh, 0Ah, "$"


; Code segment

.CODE
.686p
.XMM

dazdtect PROC NEAR

.startup
; Allow assembler to create code that
; initializes stack and data segment
; registers

; Step 1.

;Verify Genuine Intel processor by checking CPUID generated vendor ID

mov
eax,
0
cpuid

cmp
ebx, 'uneG'
; Compare first 4 letters of Vendor ID
jne
notIntelprocessor
; Jump if not Genuine Intel processor
cmp
edx, 'Ieni'
; Compare next 4 letters of Vendor ID
jne
notIntelprocessor
; Jump if not Genuine Intel processor
cmp
ecx, 'letn'
; Compare last 4 letters of Vendor ID
jne
notIntelprocessor
; Jump if not Genuine Intel processor

; Step 2, 3, and 4

; Get CPU feature flags
; Verify FXSAVE and either SSE or
; SSE2 are supported

mov
eax,
1
cpuid
bt
edx, 24t
; Feature Flags Bit 24 is FXSAVE support
jnc
noFxsave
; jump if FXSAVE not supported

bt
edx, 25t
; Feature Flags Bit 25 is SSE support
jc
sse_or_sse2_supported
; jump if SSE is not supported

bt
edx, 26t
; Feature Flags Bit 26 is SSE2 support
jnc
no_sse_sse2
; jump if SSE2 is not supported

sse_or_sse2_supported:

; FXSAVE requires a 16-byte aligned
; buffer so get offset into buffer

mov
bx, OFFSET buffer
; Get offset of the buffer into bx
and
bx,
0FFF0h
add
bx, 16t
; DI is aligned at 16-byte boundary

; Step 5.

; Clear the buffer that will be
Program
Examples
R
Application Note
97
; used for FXSAVE data

push
ds
pop
es
mov di,
bx
xor
ax,
ax
mov
cx,
512/2
cld
rep
stosw
; Fill at FXSAVE buffer with zeroes

; Step 6.

fxsave
[bx]

; Step 7.

mov
eax, DWORD PTR [bx][28t] ; Get MXCSR_MASK
cmp
eax, 0
; Check for valid mask
jne
check_mxcsr_mask
mov
eax, 0FFBFh
; Force use of default MXCSR_MASK

check_mxcsr_mask:
; EAX contains MXCSR_MASK from FXSAVE buffer or default mask

; Step 8.
bt
eax, 6t
; MXCSR_MASK Bit 6 is DAZ support
jc
supported
; Jump if DAZ supported

mov
dx, OFFSET daz_mask_clear
jmp
notSupported

supported:
mov
dx, OFFSET supports_daz ; Indicate DAZ is supported.
jmp
print

notIntelProcessor:
mov
dx, OFFSET not_intel
; Assume not an Intel processor
jmp
print

no_sse_sse2:
mov
dx, OFFSET noSSEorSSE2 ; Setup error message assuming no SSE/SSE2
jmp
notSupported

noFxsave:
mov
dx, OFFSET no_FXSAVE

notSupported:
mov
ah, 09h
; Execute DOS print string function
int
21h

mov
dx, OFFSET no_daz
print:
mov
ah, 09h
; Execute DOS print string function
int
21h

exit:
.exit
; Allow assembler to generate code
;
that
returns
control
to
DOS
ret

dazdtect ENDP

END
Program Examples
R
98
Application Note
Example 8. Frequency Calculation
;
Filename: CPUFREQ.ASM
;
Copyright(c) 2003 - 2006 by Intel Corporation
;
;
This program has been developed by Intel Corporation. Intel
;
has various intellectual property rights which it may assert
;
under certain circumstances, such as if another
;
manufacturer's processor mis-identifies itself as being
;
"GenuineIntel" when the CPUID instruction is executed.
;
;
Intel specifically disclaims all warranties, express or
;
implied, and all liability, including consequential and other
;
indirect damages, for the use of this program, including
;
liability for infringement of any proprietary rights,
;
and including the warranties of merchantability and fitness
;
for a particular purpose. Intel does not assume any
;
responsibility for any errors which may appear in this program
;
nor any responsibility to update it.
;
;
This example assumes the system has booted DOS.
;
This program runs in Real mode.
;
;****************************************************************
;
;
This program was assembled using MASM 6.14.
;
;
This program performs the following 8 steps to determine the
;
processor actual frequency.
;
; Step 1. Execute the CPUID instruction with an input value of
;
EAX=0 and ensure the vendor-ID string returned is
;
"GenuineIntel".
; Step 2. Execute the CPUID instruction with EAX=1 to load the
;
EDX register with the feature flags.
; Step 3. Ensure that the TSC feature flag (EDX bit 4) is set.
;
This indicates the processor supports the Time Stamp
;
Counter and RDTSC instruction.
; Step 4. Read the TSC at the beginning of the reference period
; Step 5. Read the TSC at the end of the reference period.
; Step 6. Compute the TSC delta from the beginning and ending
;
of the reference period.
; Step 7. Compute the actual frequency by dividing the TSC
;
delta by the reference period.
;
;****************************************************************

.DOSSEG
.MODEL small, pascal
.STACK

include cpufreq.inc

SEG_BIOS_DATA_AREA
EQU 040h
OFFSET_TICK_COUNT EQU 06ch
INTERVAL_IN_TICKS
EQU 091t
;
18.2
*
5
seconds

PMG_PST_MCNT
EQU 0E7h

; Code segment

.CODE
.686p

;----------------------------------------------------------------
; Function
cpufreq
;
This function calculates the Actual and Rounded frequency of
Program
Examples
R
Application Note
99
; the processor.
;
; Input: None
;
; Destroys: EAX, EBX, ECX, EDX
;
; Output: AX = Measured Frequency
; BX
=
Reported
Frequency
;
; Assumes: Stack is available
;
;----------------------------------------------------------------
cpufreq PROC NEAR
local
tscLoDword:DWORD,
\
tscHiDword:DWORD,
\
mhz:WORD, \
Nearest66Mhz:WORD,\
Nearest50Mhz:WORD,\
delta66Mhz:WORD

; Step 1.

;Verify Genuine Intel processor by checking CPUID generated
; vendor ID

mov
eax,
0
cpuid

cmp
ebx,
'uneG' ;
Check
VendorID
=
GenuineIntel
jne
exit
;
not
Genuine
Intel
processor
cmp
edx,
'Ieni'
jne
exit
cmp
ecx,
'letn'
jne
exit


; Step 2 and 3

; Get CPU feature flags
; Verify TSC is supported

mov
eax,
1
cpuid
bt
edx,
4t
;
Flags
Bit
4
is
TSC
support
jnc
exit
;
jump
if
TSC
not
supported

and
eax,
0FFF3FF0h
cmp
eax,
000006F0h
je
_4a_to_5a


push
SEG_BIOS_DATA_AREA
pop
es
mov
si, OFFSET_TICK_COUNT
; The BIOS tick count updates
mov
ebx, DWORD PTR es:[si]
; ~ 18.2 times per second.

wait_for_new_tick:

cmp
ebx, DWORD PTR es:[si]
; Wait for tick count change
je
wait_for_new_tick

; Step 4
; **Timed interval starts**

; Read CPU time stamp
rdtsc
; Read & save TSC immediately
mov
tscLoDword,
eax
;
after
a
tick
mov
tscHiDword,
edx
Program Examples
R
100
Application Note

; Set time delay value ticks.
add
ebx, INTERVAL_IN_TICKS + 1

wait_for_elapsed_ticks:

cmp
ebx, DWORD PTR es:[si]
; Have we hit the delay?
jne
wait_for_elapsed_ticks

; Step 5
; **Time interval ends**

; Read CPU time stamp immediately after tick delay reached.
rdtsc

step_6:
; Step 6

sub
eax,
tscLoDword
;
Calculate
TSC
delta
from
sbb
edx,
tscHiDword
;
beginning
to
end
of
; interval

jmp
step_7

_4a_to_5a:

mov
ecx,
PMG_PST_MCNT
; MSR containing C0_MCNT
xor
eax,
eax
xor
edx,
edx
push
SEG_BIOS_DATA_AREA
pop
es
mov
si, OFFSET_TICK_COUNT
; The BIOS tick count updates
mov
ebx, DWORD PTR es:[si]
; ~ 18.2 times per second.


wait_for_new_tick_4a:
cmp
ebx, DWORD PTR es:[si]
; Wait for tick count change
je
wait_for_new_tick_4a

; Step 4a
; **Timed interval starts**
; Zero the C0_MCNT
wrmsr ;
Write
0
to
C0_MCNT
timer

; Set time delay value ticks.
add
ebx, INTERVAL_IN_TICKS + 1
elapsed_ticks_4a:

cmp
ebx, DWORD PTR es:[si]
; Have we hit the delay?
jne
elapsed_ticks_4a

; Step 5a
; **Time interval ends**
; Read C0_MCNT immediately after tick delay reached.
rdmsr

; Step 7
;
; 54945 = (1 / 18.2) * 1,000,000 This adjusts for MHz.
; 54945*INTERVAL_IN_TICKS adjusts for number of ticks in
; interval
;
step_7:
mov
ebx,
54945*INTERVAL_IN_TICKS
div
ebx
Program
Examples
R
Application Note
101
; ax contains measured speed in MHz
mov
mhz,
ax

; Find nearest full/half multiple of 66/133 MHz
xor
dx,
dx
mov
ax,
mhz
mov
bx,
3t
mul
bx
add
ax,
100t
mov
bx,
200t
div
bx
mul
bx
xor
dx,
dx
mov
bx,
3
div
bx

; ax contains nearest full/half multiple of 66/100 MHz

mov
Nearest66Mhz,
ax
sub
ax,
mhz
jge
delta66
neg
ax
; ax = abs(ax)

delta66:

; ax contains delta between actual and nearest 66/133 multiple
mov
Delta66Mhz,
ax

; Find nearest full/half multiple of 100 MHz
xor
dx,
dx
mov
ax,
mhz
add
ax,
25t
mov
bx,
50t
div
bx
mul
bx

; ax contains nearest full/half multiple of 100 MHz

mov
Nearest50Mhz,
ax
sub
ax,
mhz
jge
delta50
neg
ax
; ax = abs(ax)

delta50:

; ax contains delta between actual and nearest 50/100 MHz
; multiple

mov
bx,
Nearest50Mhz
cmp
ax,
Delta66Mhz
jb
useNearest50Mhz
mov
bx,
Nearest66Mhz

; Correction for 666 MHz (should be reported as 667 MHZ)

cmp
bx,
666
jne
correct666
inc
bx

correct666:
useNearest50MHz:

; bx contains nearest full/half multiple of 66/100/133 MHz

exit:

mov
ax,
mhz
;
Return
the
measured
; frequency in AX
Program Examples
R
102
Application Note
ret

cpufreq ENDP

END

;----------------------------------------------------------------------
; Procedure
wordToDec
;
This routine will convert a word value into a 5 byte decimal
; ascii
string.
;
; Input: decAddr = address to 5 byte location for converted string
;
(near address assumes DS as segment)
;
hexData = word value to be converted to hex ascii
;
; Destroys: ax, bx, cx
;
; Output:
5 byte converted hex string
;
; Assumes:
Stack is available
;
;----------------------------------------------------------------------

wordToDec PROC NEAR PUBLIC uses es,
decAddr:WORD,
hexData:WORD

pusha
mov
di, decAddr
push
@data
pop
es
; ES:DI -> 5-byte converted string

mov
ax,
hexData
xor
dx,
dx
mov
bx,
10000t
div
bx
add
ax,
30h
stosb

mov
ax,
dx
xor
dx,
dx
mov
bx,
1000t
div
bx
add
ax,
30h
stosb

mov
ax,
dx
xor
dx,
dx
mov
bx,
100t
div
bx
add
ax,
30h
stosb

mov
ax,
dx
xor
dx,
dx
mov
bx,
10t
div
bx
add
ax,
30h
stosb
Program
Examples
R
Application Note
103
mov
ax,
dx
add
ax,
30h
stosb

popa
ret

wordToDec ENDP

END
